ACL Aluglide >> ACL Aluglide Main bearing set - 5M1228-.25

ACL Aluglide Main bearing set - 5M1228-.25

Part
Thumbnail
Thumbnail
Thumbnail
Thumbnail
ACL Aluglide logo

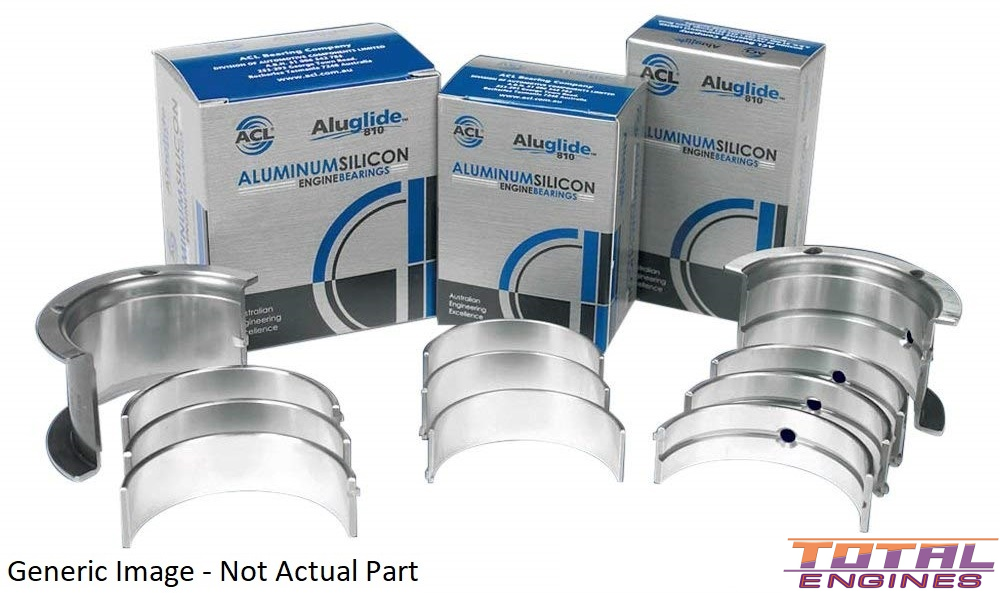

ACL Aluglide Main bearing set - 5M1228-.25

Out Of Stock

Specifications
Max Wall At Crown: 0.0783in / 1.99mm
Max Overall Length: 1in / 25.4mm
Min Vertical Oil Clearance: 0.0008in / 0.02mm
Max Vertical Oil Clearance: 0.0032in / 0.081mm
Material: F810
Size: 0.25mm Oversize
Max Std Tunnel Size: 2.4024in / 61.021mm
Min Std Tunnel Size: 2.4016in / 61mm
Max Std Shaft Size: 2.2441in / 57mm
Min Std Shaft Size: 2.2435in / 56.985mm
Manufacturer: ACL
OE Part Number 1: MD195921
Half Type: Identical Halves
Main Bearing (c): 1187A(F)
Material: F810
Max Vertical Oil Clearance: 0.0032in / 0.082mm
Min Vertical Oil Clearance: 0.0008in / 0.02mm
Max Overall Length: 0.8268in / 21mm
Max Wall At Crown: 0.0783in / 1.99mm
Max Std Tunnel Size: 2.4024in / 61.021mm
Min Std Tunnel Size: 2.4016in / 61mm
Max Std Shaft Size: 2.2441in / 57mm
Min Std Shaft Size: 2.2435in / 56.985mm
Manufacturer: ACL
OE Part Number 1: MD195916
Half Type: Upper & Lower
Main Bearing (c): 1186A
Manufacturer: ACL
Brand: ACL Aluglide
Main Bearing Set: 5M1228

Description

With 1 Flanged Shell
