ACL Race Series >> ACL Race Series Main bearing set-performance - 5M909H-009

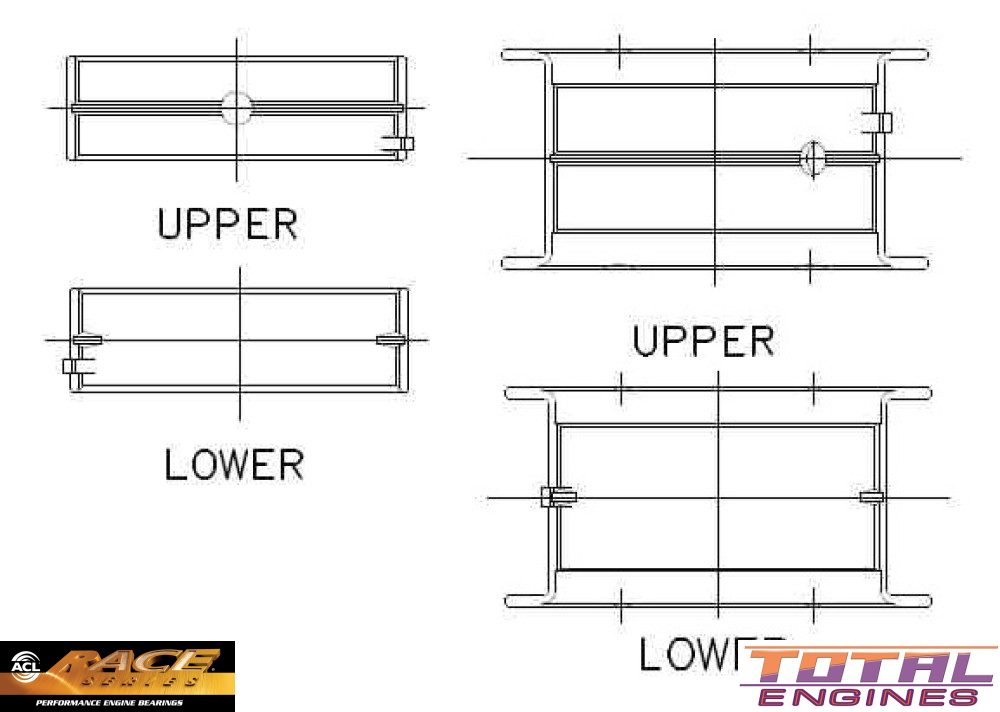

ACL Race Series Main bearing set-performance - 5M909H-009

Part
ACL Race Series logo

ACL Race Series Main bearing set-performance - 5M909H-009

Out Of Stock

Specifications
Material: Race Series (Tri-Metal)
Position: 1,2,3,4
Std Shaft Diam: 2.4484"/2.4493" (62.189mm/62.212mm)
Oil Clearance: TBA
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length: 0.8070" (20.500mm)
Position: 5
Std Shaft Diam: 2.4479"/2.4488" (62.177mm/62.199mm)
Oil Clearance: TBA
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length: 1.7180" (43.640mm)
Size: STD Shaft OD 62.1mm
Size: 0.225mm Oversize
