Nason Piston & pin set - 4DP2071-STD

Specifications
Piston Set:	4 x Pistons & Pins
Std Bore Size:	87.00mm
Size:	STD

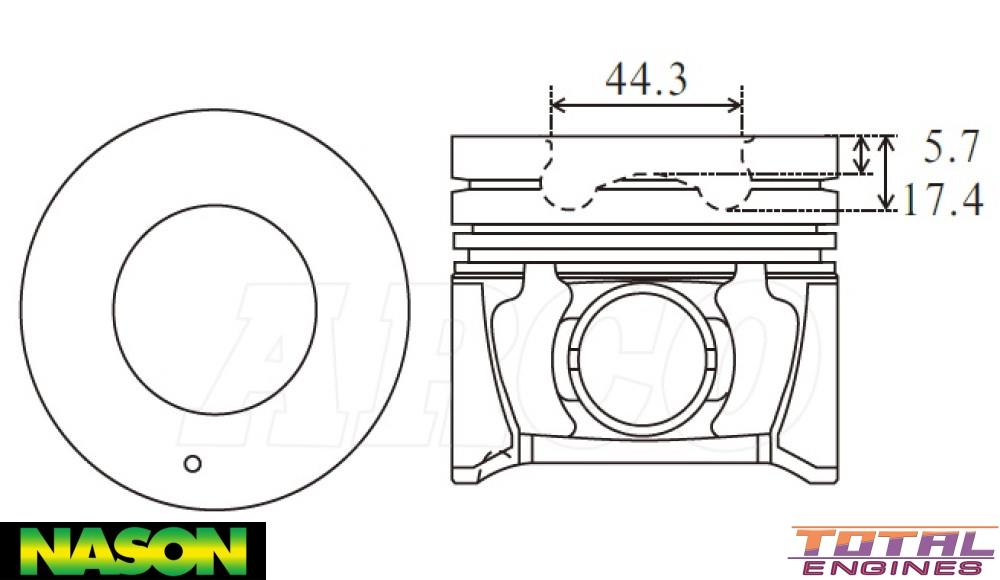

Head Type:	Flat Top With Combustion Bowl
Piston Type:	Cast
Length:	72.30mm
Comp Height:	46.30mm, -5.70mm, -17.40mm
Combustion Bowl OD:	44.30mm
Pin Size:	28.00mm x 72.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm Double Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Ring Set:	42048-STD

Description

Alfin, Oil Gallery Cooling
