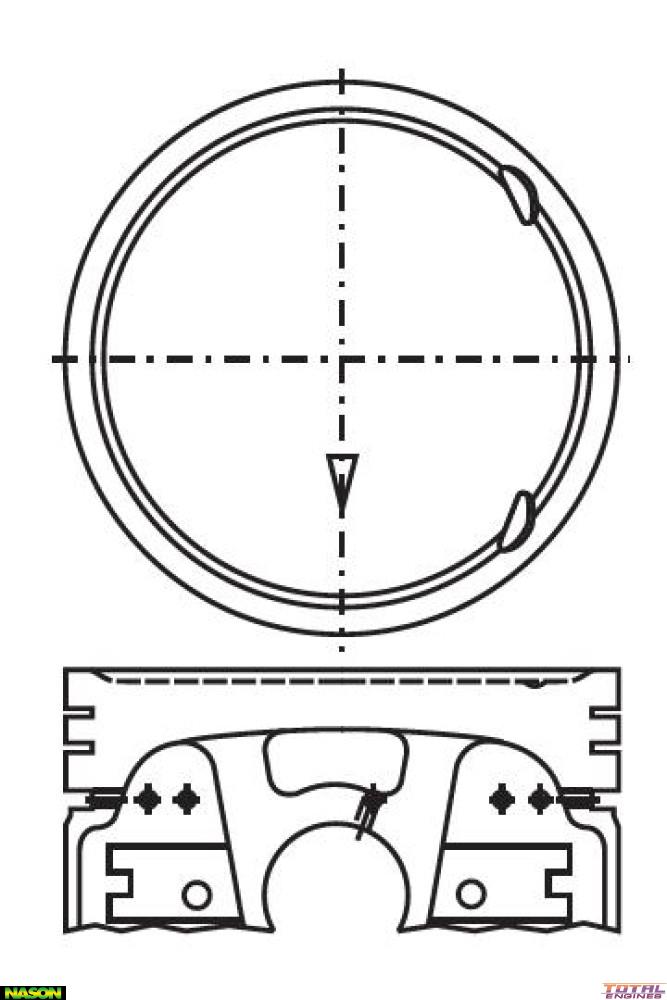

Nason Piston & pin set - 4P1071-1.00

Part

Nason Piston & pin set - 4P1071-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	85.00mm
Size:	1.00mm / .040"
Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	67.00mm
Comp Height:	35.00mm - 1.80mm
Pin Size:	22.00mm x 62.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4933

Description

Bowl Depth 1.80mm
