Chevrolet >> Corvette >> C3 >> 5.7 Litre V8 LM1 OHV 16v >> 01/1969 - 12/1971 2 Door Coupe >> ACL Race Series Main bearing set-performance

ACL Race Series Main bearing set-performance Fits Chevrolet Corvette C3 Coupe [01/1969 to 12/1971] (5.7L LM1 V8 OHV CARB)

Part
ACL Race Series logo

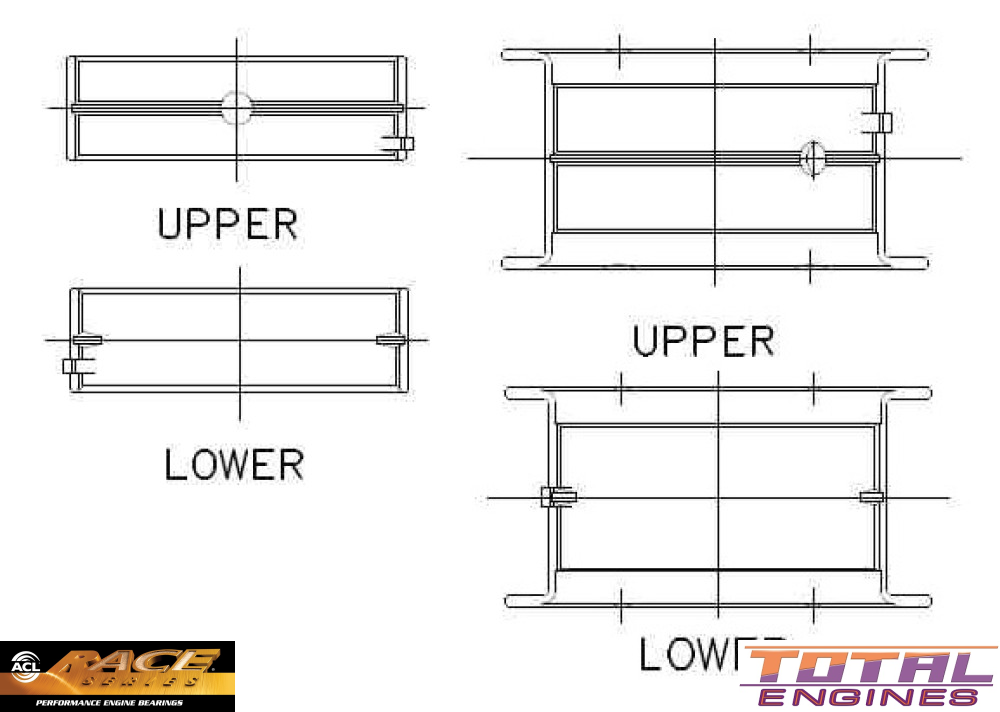

ACL Race Series Main bearing set-performance

$116.21

Specifications
Material: Race Series (Tri-Metal)
Position: 1,2,3,4
Std Shaft Diam: 2.4484"/2.4493" (62.189mm/62.212mm)
Oil Clearance: TBA
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length: 0.8070" (20.500mm)
Position: 5
Std Shaft Diam: 2.4479"/2.4488" (62.177mm/62.199mm)
Oil Clearance: TBA
Maximum Wall: 0.0954" (2.423mm)
Housing Bore: 2.6406"/2.6416" (67.071mm/67.097mm)
Max Length: 1.7180" (43.640mm)
Size: STD Shaft OD 62.1mm
Size: 0.225mm Oversize

Tick This part will fit the following Vehicles:

Chevrolet Corvette C3 (5.7 Litre V8 LM1 OHV 16v):
  • RWD Convertible 2 Door [01/1969 to 12/1971] 224KW With Auto or Manual Transmission
  • RWD Coupe 2 Door [01/1969 to 12/1971] 224KW With Auto or Manual Transmission
  • RWD Convertible 2 Door [01/1972 to 12/1975] 123KW With Auto or Manual Transmission
  • RWD Coupe 2 Door [01/1972 to 12/1975] 123KW With Auto or Manual Transmission
  • RWD Convertible 2 Door [01/1972 to 12/1975] 224KW With Auto or Manual Transmission
  • RWD Convertible 2 Door [01/1972 to 12/1974] 138KW With Auto or Manual Transmission
  • RWD Convertible 2 Door [01/1973 to 12/1975] 186KW With Auto or Manual Transmission
  • RWD Coupe 2 Door [01/1973 to 12/1975] 186KW With Auto or Manual Transmission
