Daewoo >> Cielo >> ATA08V >> 1.5 Litre 4 Cyl G15MF SOHC 8v >> GL ATA08Y 10/1995 - 12/1997 2 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Daewoo Cielo ATA08V GL ATA08Y Hatchback [10/1995 to 12/1997] (1.5L G15MF 4 Cyl SOHC MPFI)

Part
Nason logo

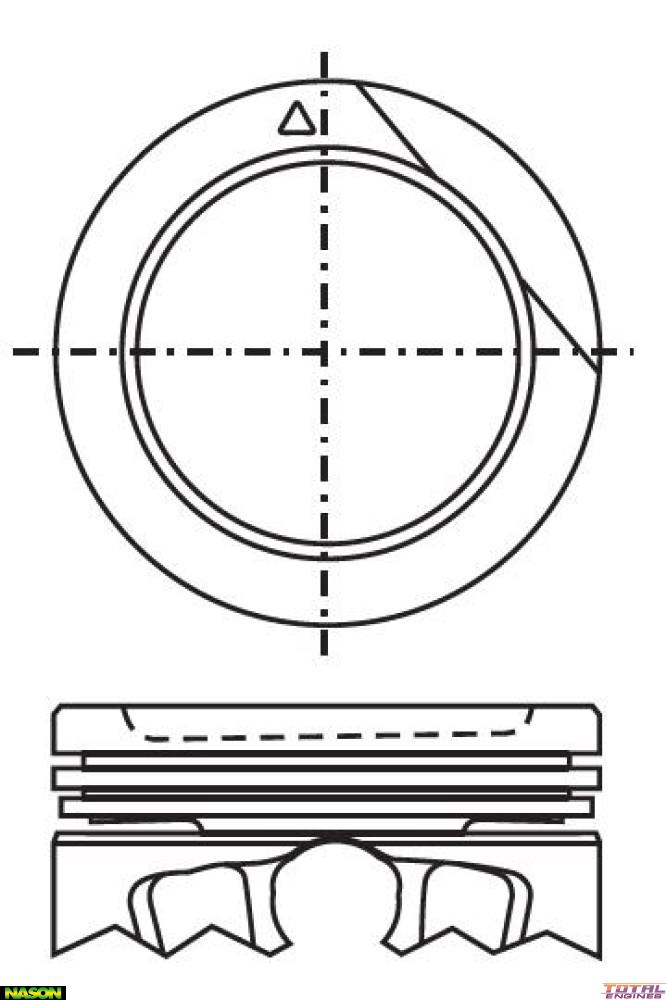

Nason Piston & pin set

Out Of Stock

Specifications
Ring Set: 2C4819 or 4819
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 18.00mm x 54.50mm
Comp Height: 28.60mm - 4.10mm
Length: 48.40mm
Piston Type: Cast
Head Type: Dish Top
Size: Std
Std Bore Size: 76.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Daewoo Cielo ATA08V (1.5 Litre 4 Cyl G15MF SOHC 8v):
  • GL FWD 4 Door [10/1995 to 07/1997] 55KW With Auto Transmission
  • GL ATA08Y FWD Hatchback 2 Door [10/1995 to 12/1997] 55KW With Auto Transmission
  • GL ATA19Y FWD Sedan 4 Door [10/1995 to 07/1997] 55KW With Auto Transmission
  • GL ATF08Y FWD Hatchback 2 Door [10/1995 to 02/1998] 55KW With Manual Transmission
  • GL ATF19Y FWD Sedan 4 Door [10/1995 to 07/1997] 55KW With Manual Transmission
  • GL ATF68Y FWD Hatchback 4 Door [10/1995 to 07/1997] 55KW With Manual Transmission

Description

Nason, STD Size
