Ford >> Courier >> PC >> 2.6 Litre 4 Cyl 4G54 SOHC 8v >> SGHC 05/1987 - 12/1992 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Courier PC SGHC Ute [05/1987 to 12/1992] (2.6L 4G54 4 Cyl SOHC CARB)

Part
Nason logo

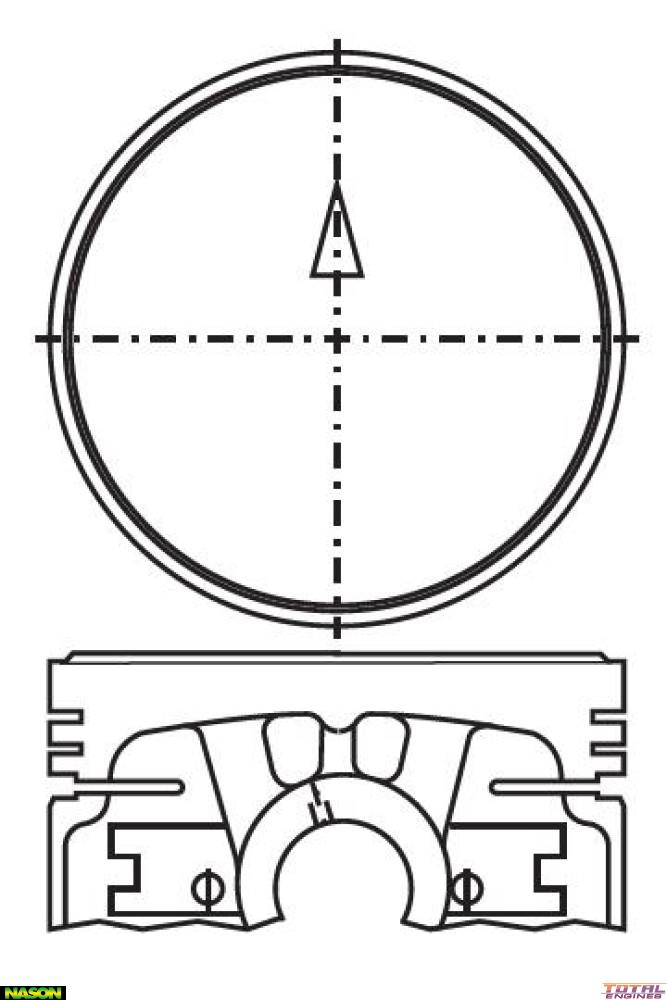

Nason Piston & pin set

Fitment Information:

Nason, STD Size Flat Top

Out Of Stock

Specifications
Ring Set: 2C5667 or 5667
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 79.00mm
Comp Height: 36.00mm + 0.30mm
Length: 78.30mm
Piston Type: Cast
Head Type: Flat Top
Size: Std
Std Bore Size: 91.10mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Ford Courier PC (2.6 Litre 4 Cyl 4G54 SOHC 8v):
  • SGHC 4WD Ute 2 Door [05/1987 to 12/1992] 73KW With Manual Transmission With: With Flat Top
  • XL SGHC 4WD Ute 4 Door [05/1987 to 11/1992] 74KW With Manual Transmission With: With Flat Top

Description

Nason, STD Size
