Ford >> Courier >> PC >> 2.2 Litre 4 Cyl F2 SOHC 12v >> SGHP 01/1988 - 06/1993 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Courier PC SGHP Ute [01/1988 to 06/1993] (2.2L F2 4 Cyl SOHC CARB)

Part
Nason logo

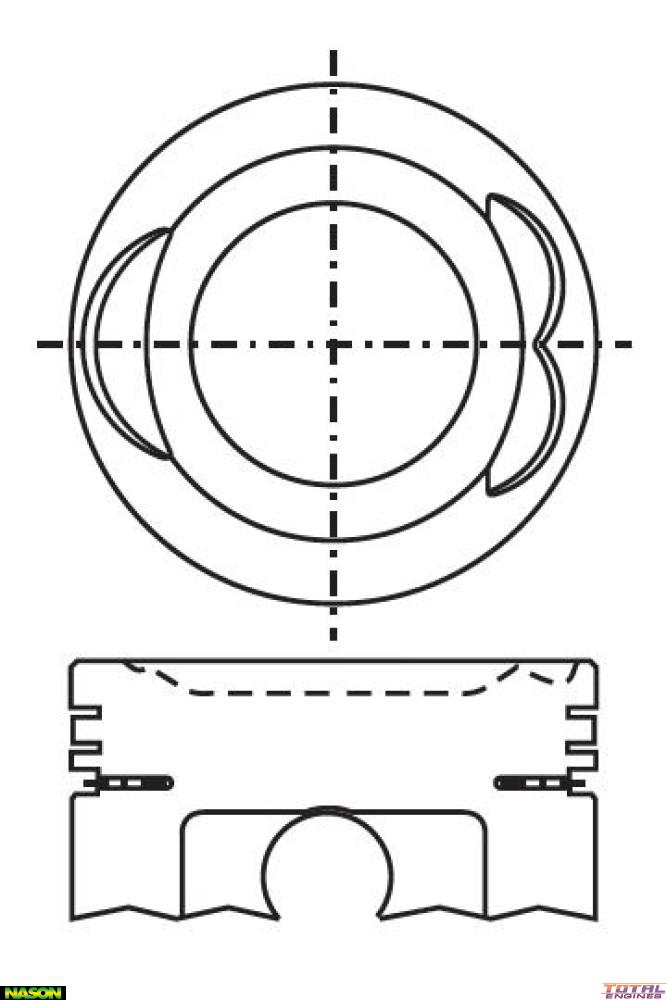

Nason Piston & pin set

$205.92

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.00mm
Size: Std
Head Type: Dish Top with 3 Valve Reliefs
Piston Type: Cast
Length: 70.40mm
Comp Height: 36.10mm - 5.40mm
Pin Size: 22.00mm x 67.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M5664 or 5664

Alert WARNING! This part will NOT FIT the following Vehicles:

Ford Courier (No Series) (2.2 Litre 4 Cyl F2 SOHC 12v):
  • XLT SACP RWD Utility 2 Door [01/1992 to 12/1998] 77KW With Manual Transmission

Tick This part will fit the following Vehicles:

Ford Courier PC (2.2 Litre 4 Cyl F2 SOHC 12v):
  • SGHP RWD Ute 2 Door [01/1988 to 06/1993] 68KW With Manual Transmission

Description

Nason, STD Size
