Ford >> Maverick >> DA >> 4.2 Litre 6 Cyl TD42 OHV 12v >> WRGY60 02/1988 - 09/1993 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Ford Maverick DA WRGY60 Wagon [02/1988 to 09/1993] (4.2L TD42 6 Cyl OHV Diesel Inj)

Part
Nason logo

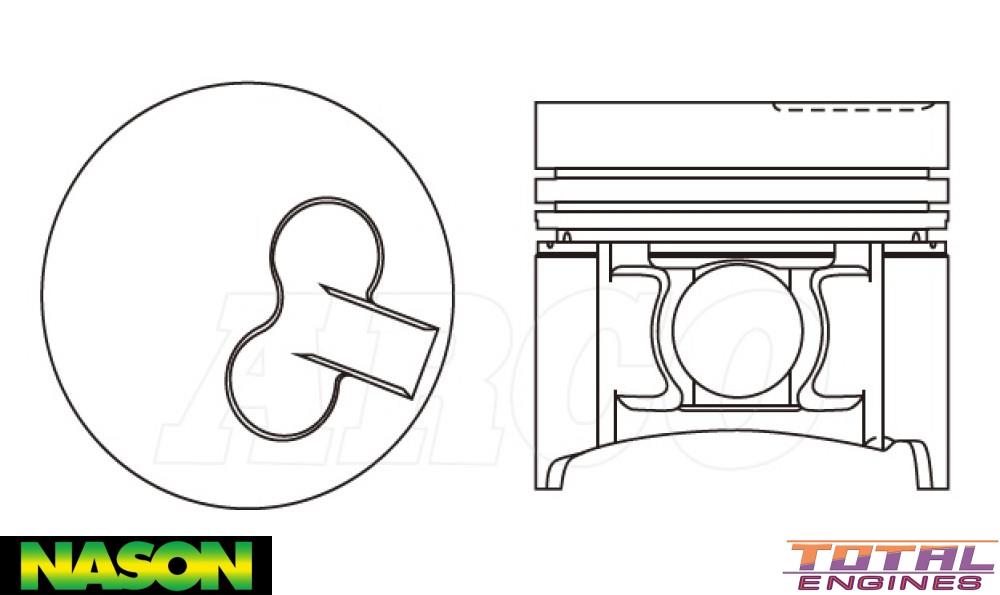

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings - With 30mm Pin

Out Of Stock

Specifications
Size: With 30mm Pin
Ring Set: 23305-0.50
Oil Ring Width: 3.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 30.00mm x 74.00mm
Comp Height: 50.30mm, -0.50mm, -1.70mm
Length: 86.00mm
Piston Type: Cast
Head Type: Clover Leaf
Size: 0.50mm / .020"
Std Bore Size: 96.00mm
Piston Set: 6 x Pistons & Pins

Tick This part will fit the following Vehicles:

Ford Maverick DA (4.2 Litre 6 Cyl TD42 OHV 12v):
  • URGY60 4WD Ute 2 Door [02/1988 to 09/1993] 85KW With Manual Transmission
  • WRGY60 4WD Wagon 4 Door [02/1988 to 09/1993] 85KW With Manual Transmission
  • XL KRY60 4WD Hardtop 2 Door [02/1988 to 09/1993] 85KW With Manual Transmission

Description

With 30mm Pin

Combustion Bowl OD

Alfin Insert
