Ford >> Transit >> VM >> 2.4 Litre 4 Cyl H9FB DOHC 16v >> DXXTT 10/2006 - 02/2012 3 Door Bus >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Ford Transit VM DXXTT Bus [10/2006 to 02/2012] (2.4L H9FB 4 Cyl DOHC Turbo Diesel Inj)

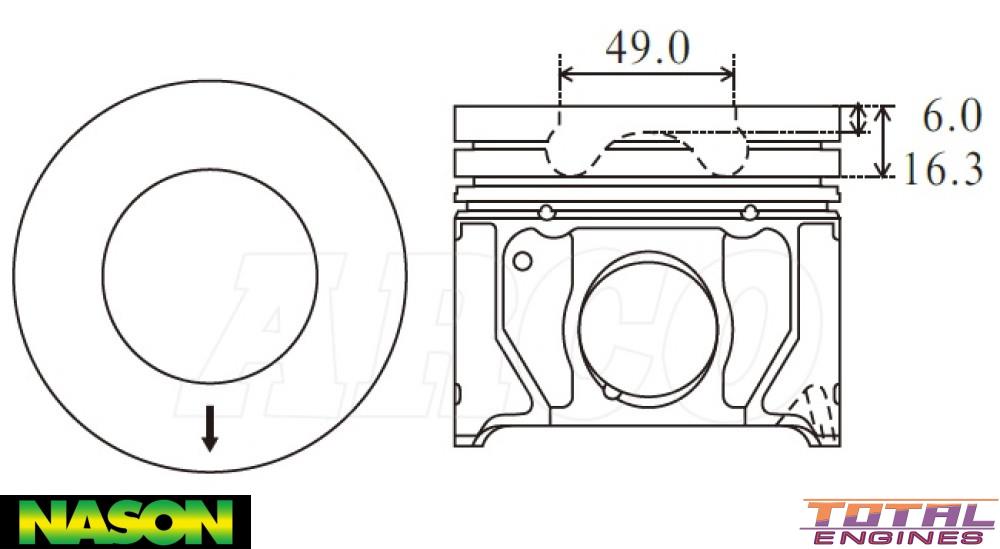

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$563.06

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 89.90mm
Size: 0.50mm / .020"
Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 80.40mm
Comp Height: 53.50mm, -6.00mm, -16.30mm
Combustion Bowl OD: 49.00mm
Pin Size: 32.00mm x 71.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 50049-0.50 X 4

Tick This part will fit the following Vehicles:

Ford Transit VM (2.4 Litre 4 Cyl H9FB DOHC 16v):
  • DXXTT RWD Bus 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • FXXTT RWD Cab Chassis 2 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • Jumbo LWB High Roof XXXTT RWD Van 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • LWB XXXTT RWD Van 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • NXXTT RWD Cab Chassis 4 Door [10/2006 to 02/2012] 103KW With Manual Transmission
  • SWB/MWB XXXBD RWD Van 3 Door [10/2006 to 02/2012] 103KW With Manual Transmission

Description

Nason Piston & Pin Set 0.50 Oversize - Premium Performance for Your Transit

Revitalize your engine's performance with the Nason Piston & Pin Set 0.50 Oversize, specifically engineered for Ford Transit models VJ and VM with the powerful 101kw or 103kw engines (H9FA, H9FB). Designed to meet the highest standards, this piston set ensures optimal efficiency and durability for your vehicle.

Key Features:

  • Compatibility: Perfectly suits Ford Transit VH 2.4L H9FA Turbo CRD 101kw, VJ 2.4L H9FA Turbo CRD 101kw, and VM 2.4L H9FB Turbo Diesel Inj 103kw, featuring alfin construction with oil gallery cooling for enhanced performance.
  • Precision Engineering: Each set includes 4 high-quality cast pistons and pins, meticulously crafted with a standard bore size of 89.90mm and an oversize of 0.50mm (.020\") for precise fit and reliable performance.
  • Superior Design: Flat top pistons with an integrated combustion bowl enhance combustion efficiency, while the full-floating pin design (32.00mm x 71.00mm) ensures smooth operation and reduced wear.
  • Durable Specifications: Built to last with a piston length of 80.40mm and compartment height options designed for performance tuning. The skirt coating provides added protection for extended longevity.

Specifications:

  • Top Ring Width: 2.00mm
  • 2nd Ring Width: 2.00mm
  • Oil Ring Width: 2.00mm
  • Ring Set: 50049-0.50 X 4
  • Combustion Bowl OD: 49.00mm
  • Piston to Bore: Refer to the label on the box for proper fitment.

Warning! This product is NOT compatible with certain Ford Transit models, including the VH 2.4L D0FA Turbo Diesel Inj 92kw and others listed above. Please ensure your vehicle matches the specified compatible models.

Upgrade your engine's performance today with the Nason Piston & Pin Set 0.50 Oversize and experience the difference in power, efficiency, and reliability! Order now and transform your vehicle's performance on the road!
