Holden >> Astra >> TS >> 1.8 Litre 4 Cyl Z 18 XE DOHC 16v >> City, Equipe, SXI TGF08 06/2001 - 07/2004 2 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Holden Astra TS City, Equipe, SXI TGF08 Hatchback [06/2001 to 07/2004] (1.8L Z 18 XE 4 Cyl DOHC MPFI)

Part
Nason logo

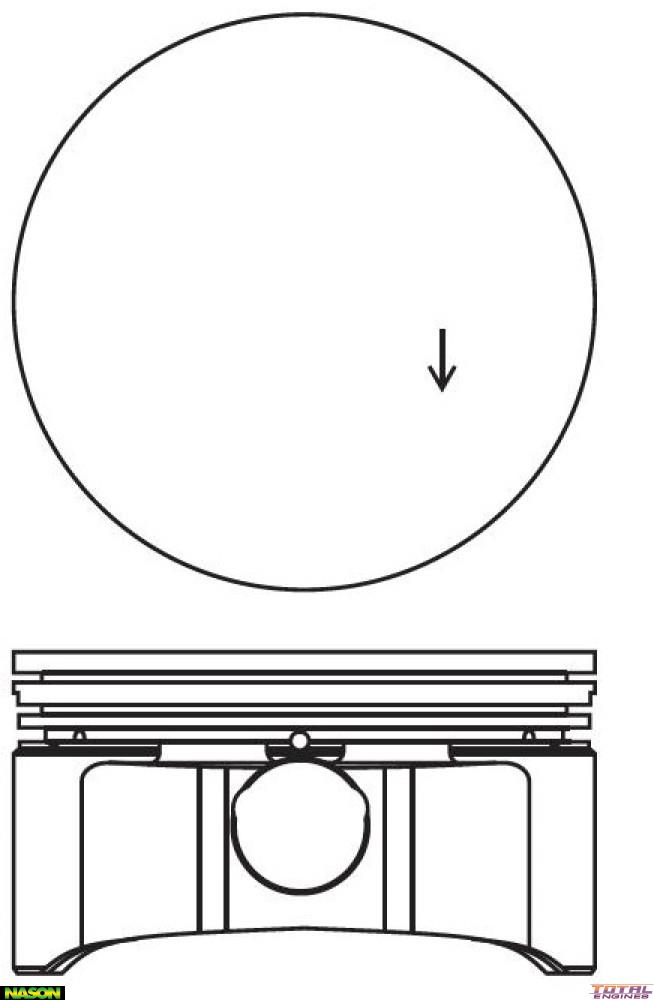

Nason Piston & Pin Set

$225.23

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 1.00mm / .040"
Head Type: Flat Top
Piston Type: Cast
Length: 44.70mm
Comp Height: 24.10mm
Pin Size: 18.00mm x 55.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5185
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Holden Astra AH (1.8 Litre 4 Cyl Z 18 XE DOHC 16v):
  • AHL08 FWD Hatchback 4 Door [07/2005 to 03/2007] 90KW With Auto or Manual Transmission
  • AHL35 FWD Wagon 4 Door [07/2005 to 03/2007] 90KW With Auto or Manual Transmission
  • AHL48 FWD CDX 4 Door [11/2004 to 03/2007] 90KW With Auto or Manual Transmission
Holden Astra TS (1.8 Litre 4 Cyl Z 18 XE DOHC 16v):
  • City, Equipe, SXI TGF08 FWD Hatchback 2 Door [06/2001 to 07/2004] 90KW With Auto or Manual Transmission
  • TGF48 FWD Hatchback 4 Door [01/2000 to 06/2004] 90KW With Auto or Manual Transmission
  • TGF48 FWD Hatchback 4 Door [07/2004 to 12/2005] 90KW With Auto or Manual Transmission
  • TGF69 FWD Sedan 4 Door [01/2000 to 06/2004] 90KW With Auto or Manual Transmission
  • TGF69 FWD Sedan 4 Door [07/2004 to 12/2005] 90KW With Auto or Manual Transmission

Description

Nason Piston & Pin Set - 1.00 Oversize

Unlock Peak Performance with the Nason Piston & Pin Set

Elevate your engine's capacity and efficiency with the Nason Piston & Pin Set, designed specifically for high-performance applications in Z18XE and X18XE1 engine variants. This premium set is ideal for those looking to enhance the performance of their Holden Tigra XC 1.8L or Opel Astra AH 1.8L vehicles.

Key Features:

  • Complete Set: This package includes 4 precision-engineered pistons and corresponding pins to ensure your engine runs smoothly.
  • Precision Specs: With a standard bore size of 80.50mm and an oversize of 1.00mm (.040\"), these pistons are designed for high efficiency and power.
  • Flat Top Head Type: Achieve optimal combustion with the flat top design, ensuring maximum surface area for improved power delivery.
  • Durable Construction: Made from high-quality cast material, these pistons are built to withstand high pressure and temperature conditions.
  • Perfect Fit: The set comes with pins sized at 18.00mm x 55.00mm, featuring a press-fit type for secure and effective installation.
  • Advanced Skirt Coating: Enjoy reduced friction and enhanced durability with our specially engineered skirt coating, designed to optimize engine performance.
  • Efficient Ring Design: Includes a complete ring set (2C5185), with a top and 2nd ring width of 1.20mm and oil ring width of 2.00mm for effective sealing and oil control.

Compatibility:

  • Vehicles: This piston and pin set is specifically crafted to fit:
  • Holden Tigra XC 1.8L
  • Opel Astra AH 1.8L

Specifications:

  • Length: 44.70mm
  • Compression Height: 24.10mm
  • Piston to Bore: Refer to the label on the box for specific size adjustments.

Transform your vehicle’s engine performance and reliability with the Nason Piston & Pin Set - 1.00 Oversize! Perfect for those ready to take their engine modifications to the next level, this set promises enhanced power and efficiency, ensuring that your vehicle stands out on the road. Order now and take the first step toward an exhilarating driving experience!
