Holden >> Colorado >> RC >> 3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v >> LX 07/2008 - 05/2012 2 Door >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Holden Colorado RC LX [07/2008 to 05/2012] (3.0L 4JJ1-TCX 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$701.42

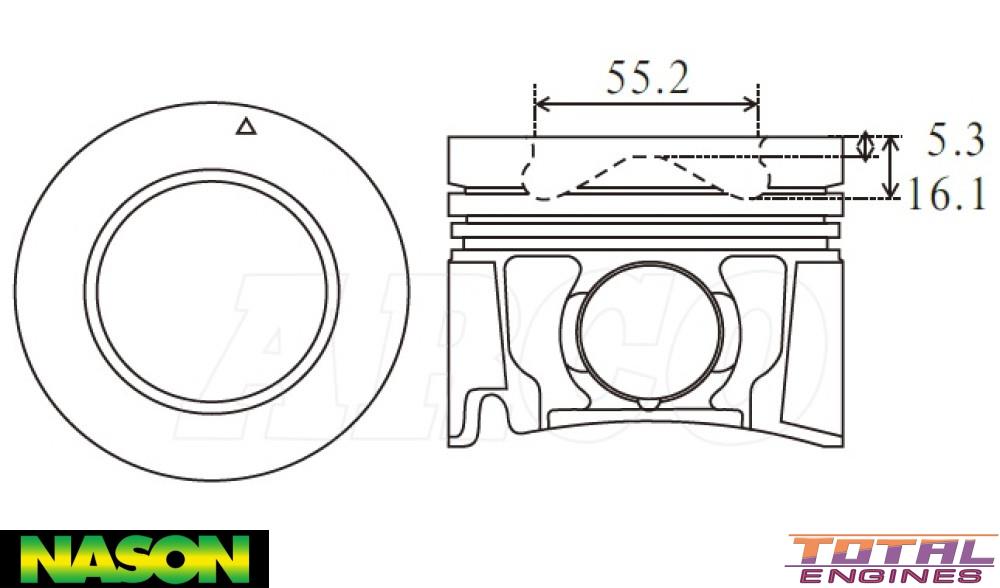

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.40mm
Size: 0.50mm / .020"
Head Type: Flat Top With Combustion Bowl
Piston Type: Cast
Length: 78.40mm
Comp Height: 49.80mm, -5.30mm, -16.10mm
Combustion Bowl OD: 55.20mm
Pin Size: 34.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 32634-0.50

Tick This part will fit the following Vehicles:

Holden Colorado RC (3.0 Litre 4 Cyl 4JJ1-TCX DOHC 16v):
  • DX, LX TFS85 4WD Ute 2 Door [07/2008 to 05/2012] 120KW With Manual Transmission
  • LT-R, LX, LX-R TFS85 4WD Ute 4 Door [07/2008 to 05/2012] 120KW With Auto or Manual Transmission
  • LX RWD 2 Door [07/2008 to 05/2012] 120KW With Auto or Manual Transmission
  • LX RWD 4 Door [07/2008 to 05/2012] 120KW With Auto or Manual Transmission

Description

Nason Piston & Pin Set 0.50 Oversize – Ultimate Performance Upgrade for Your Isuzu!

Elevate the performance of your Isuzu D-MAX, Rodeo, or Colorado with the Nason Piston & Pin Set 0.50 Oversize. Designed to deliver superior durability and efficiency, this premium-quality piston set ensures that your engine runs like new, providing the reliability you seek for your vehicle.

Compatibility:

This piston and pin set is designed to fit Isuzu D-MAX TFR and TFS models manufactured between October 2008 and May 2012. With four expertly crafted pistons and pins included in each set, you can trust that all components work in harmony to maximize your engine's potential. Please note that this product is not compatible with certain Isuzu D-MAX models manufactured after June 2012, so be sure to verify your vehicle's specifications.

Specifications:

  • Piston Set: 4 x Pistons & Pins
  • Standard Bore Size: 95.40mm
  • Oversize Size: 0.50mm / 0.020\"
  • Head Type: Flat Top with Combustion Bowl
  • Piston Type: Cast
  • Length: 78.40mm
  • Compression Height: 49.80mm, -5.30mm, -16.10mm
  • Combustion Bowl Outer Diameter (OD): 55.20mm
  • Pin Size: 34.00mm x 78.00mm
  • Pin Type: Full Floating
  • Skirt Coating: Yes
  • Ring Set: 32634-0.50
  • Top Ring Width: 2.00mm Half Keystone
  • Second Ring Width: 1.50mm
  • Oil Ring Width: 3.00mm

Key Features:

  • Advanced Cooling: With integrated alfin technology and oil gallery cooling, this piston set ensures optimal thermal management, extending the life of your engine.
  • Efficient Lubrication: Offset-position oil drain design maximizes oil distribution, keeping your engine running smoothly.
  • Precision Engineering: Each component is manufactured to exacting standards, ensuring a perfect fit and superior performance.

Whether you're restoring an older model or seeking to enhance your engine's performance, the Nason Piston & Pin Set is your go-to solution for reliability and durability. Upgrade your Isuzu today and experience the difference in power and efficiency!

Please Note: Before purchasing, confirm compatibility with your vehicle as this product does not fit Isuzu D-MAX and D-MAX TFR models manufactured after May 2012.

Order your Nason Piston & Pin Set 0.50 Oversize today and drive with confidence knowing you've chosen the best for your engine!
