Holden >> Jackaroo >> L1 >> 2.6 Litre 4 Cyl 4ZE1 SOHC 8v >> UBS17 07/1988 - 03/1992 4 Door SUV Mid-Size >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Holden Jackaroo L1 UBS17 SUV Mid-Size [07/1988 to 03/1992] (2.6L 4ZE1 4 Cyl SOHC MPFI)

Part
Nason logo

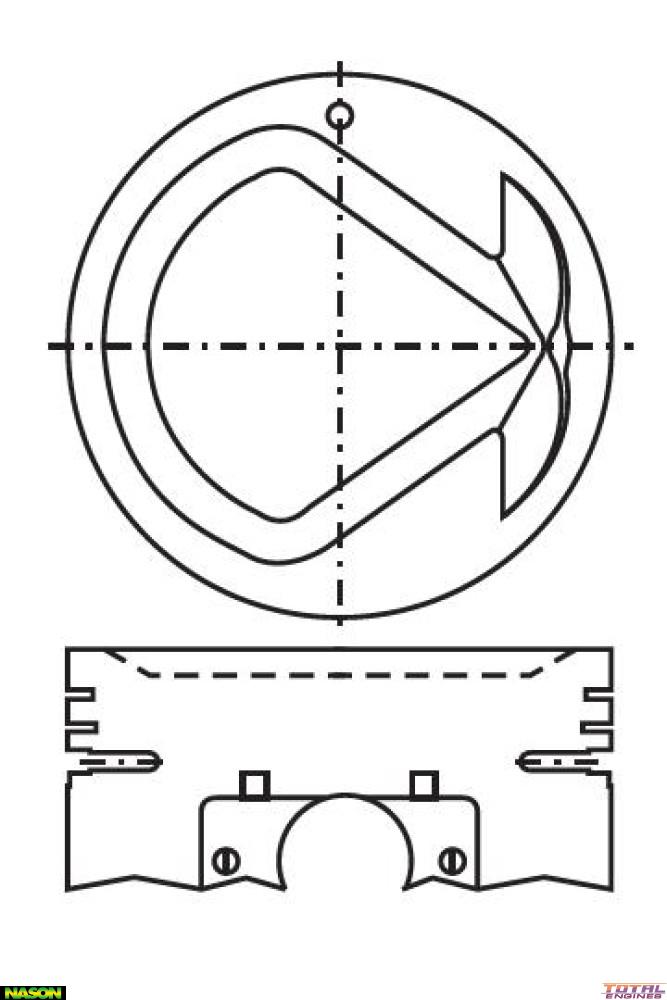

Nason Piston & Pin Set

Fitment Information:

Nason, STD Size Kidney Shaped Bowl

Out Of Stock

Specifications
Ring Set: 2M4637 or 4637
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 23.00mm x 77.00mm
Comp Height: 36.50mm - 4.30mm
Length: 79.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 92.60mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Holden Jackaroo L1 (2.6 Litre 4 Cyl 4ZE1 SOHC 8v):
  • UBS17 4WD SUV Mid-Size 4 Door [07/1988 to 03/1992] 88KW With Auto or Manual Transmission With: With Kidney Shaped Bowl

Description

Nason, STD Size
