Honda >> Civic >> VIII >> 1.8 Litre 4 Cyl R18A1 SOHC 16v >> 1.8S FD1 02/2006 - 01/2012 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Honda Civic VIII 1.8S FD1 Sedan [02/2006 to 01/2012] (1.8L R18A1 4 Cyl SOHC VTEC MPFI)

Part
Nason logo

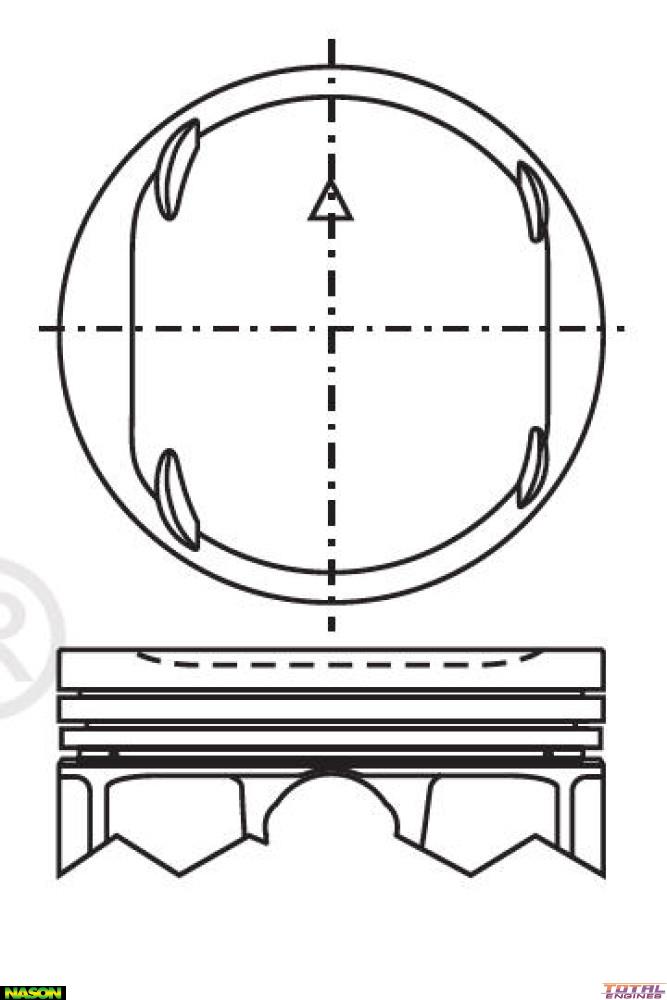

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 81.00mm
Size: 0.50mm / .020"
Head Type: Dish Top With 4 Valve Reliefs
Piston Type: Cast
Length: 49.10mm
Comp Height: 28.70mm - 2.40mm
Pin Size: 19.96mm x 46.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C4850
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Honda Civic FD (1.8 Litre 4 Cyl R18A1 SOHC 16v):
  • VTi, VTi-L, VTi LE FD1 FWD Sedan 4 Door [02/2006 to 01/2012] 103KW With Auto or Manual Transmission
Honda Civic VIII (1.8 Litre 4 Cyl R18A1 SOHC 16v):
  • 1.8S FD1 FWD Sedan 4 Door [02/2006 to 01/2012] 103KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
