Honda >> Civic >> VIII >> 1.8 Litre 4 Cyl R18A1 SOHC 16v >> 1.8S FD1 02/2006 - 01/2012 4 Door Sedan >> Nason Piston & pin set

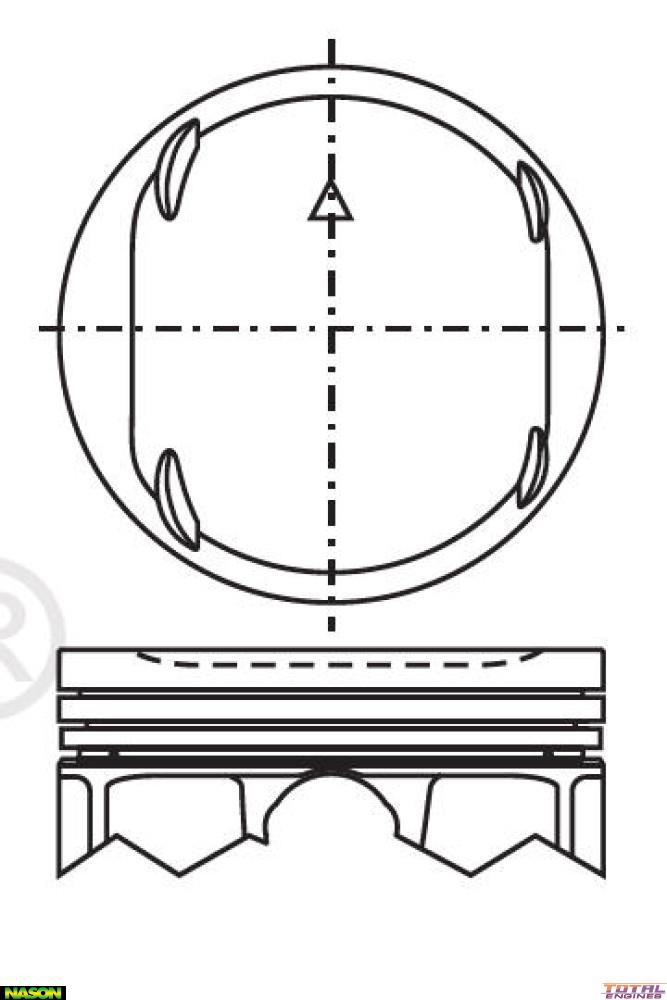

Nason Piston & pin set Fits Honda Civic VIII 1.8S FD1 Sedan [02/2006 to 01/2012] (1.8L R18A1 4 Cyl SOHC VTEC MPFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Nason, STD Size Large Combustion Bowl

Out Of Stock

Specifications
Ring Set: 2C4850
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 19.96mm x 46.00mm
Comp Height: 28.70mm - 2.40mm
Length: 49.10mm
Piston Type: Cast
Head Type: Dish Top With 4 Valve Reliefs
Size: Std
Std Bore Size: 81.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Honda Civic FD (1.8 Litre 4 Cyl R18A1 SOHC 16v):
  • VTi, VTi-L, VTi LE FD1 FWD Sedan 4 Door [02/2006 to 01/2012] 103KW With Auto or Manual Transmission
Honda Civic VIII (1.8 Litre 4 Cyl R18A1 SOHC 16v):
  • 1.8S FD1 FWD Sedan 4 Door [02/2006 to 01/2012] 103KW With Auto or Manual Transmission

Description

Nason, STD Size
