Hyundai >> Excel >> X1 >> 1.5 Litre 4 Cyl G4AJ SOHC 8v >> L HA11J 07/1987 - 12/1989 4 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Hyundai Excel X1 L HA11J Hatchback [07/1987 to 12/1989] (1.5L G4AJ 4 Cyl SOHC CARB)

Part
Nason logo

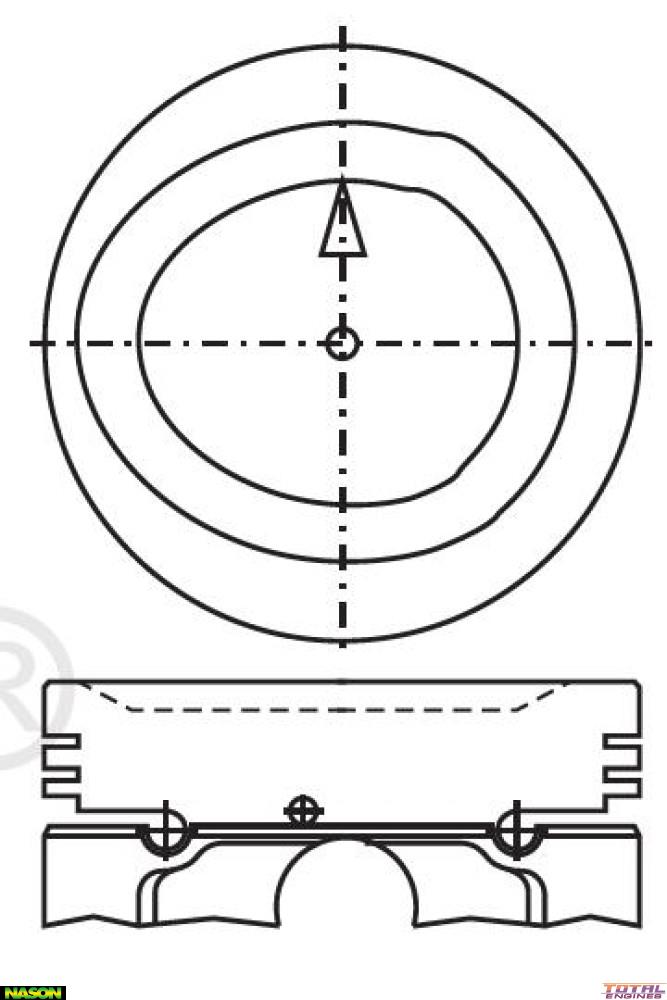

Nason Piston & Pin Set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C5716 or 5716
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.5mmm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 18.00mm x 60.00mm
Comp Height: 29.40mm - 3.60mm
Length: 58.60mm
Piston Type: Cast
Head Type: Dish Top
Size: 1.00mm / .040"
Std Bore Size: 75.50mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Hyundai Excel X1 (1.5 Litre 4 Cyl G4AJ SOHC 8v):
  • GLS HA31J FWD Hatchback 4 Door [03/1987 to 12/1989] 52KW With Auto or Manual Transmission
  • GLS HF31J FWD Sedan 4 Door [03/1987 to 12/1989] 52KW With Auto or Manual Transmission
  • L HA11J FWD Hatchback 4 Door [07/1987 to 12/1989] 52KW With Manual Transmission
  • L HD11J FWD Hatchback 2 Door [07/1987 to 12/1989] 52KW With Manual Transmission
  • L, GL, GLS HA21J FWD Hatchback 4 Door [02/1986 to 12/1989] 52KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
