Hyundai >> i30 >> FD >> 1.6 Litre 4 Cyl D4FB DOHC 16v >> SLX 1.6 CRDi DC81S 09/2011 - 01/2013 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai i30 FD SLX 1.6 CRDi DC81S Wagon [09/2011 to 01/2013] (1.6L D4FB 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$520.61

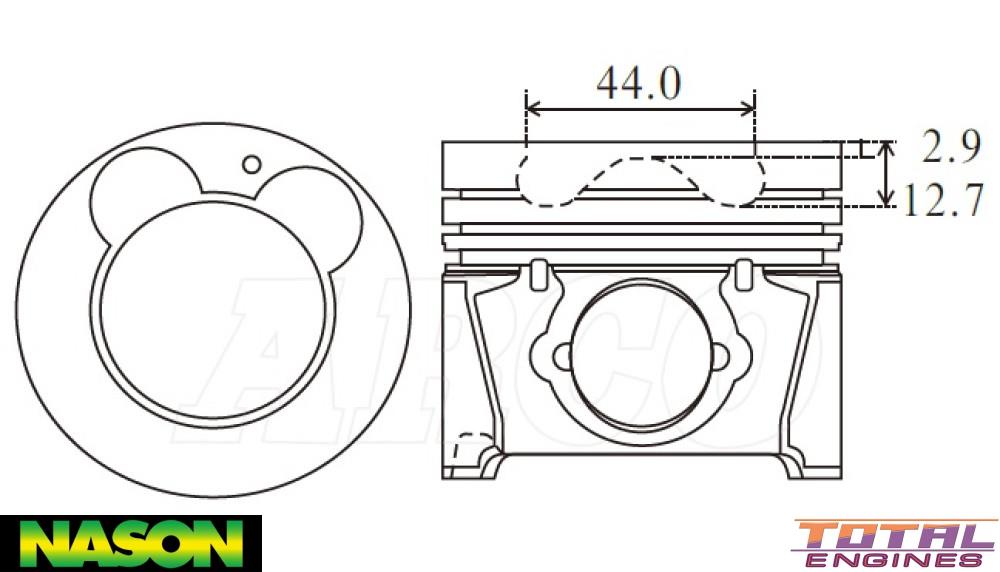

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 77.20mm
Size: STD
Head Type: Flat Top With Combustion Bowl & 2 Valve Reliefs
Piston Type: Cast
Length: 65.70mm
Comp Height: 42.00mm, -2.90mm, -12.70mm
Combustion Bowl OD: 44.00mm
Pin Size: 28.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.75mm
Oil Ring Width: 3.00mm
Ring Set: 43026-STD

Tick This part will fit the following Vehicles:

Hyundai i30 FD (1.6 Litre 4 Cyl D4FB DOHC 16v):
  • SLX 1.6 CRDi DC51S FWD Hatchback 4 Door [09/2011 to 04/2012] 85KW With Auto or Manual Transmission
  • SLX 1.6 CRDi DC51T FWD Hatchback 4 Door [10/2007 to 08/2011] 85KW With Auto or Manual Transmission
  • SLX 1.6 CRDi DC81S FWD Wagon 4 Door [09/2011 to 01/2013] 85KW With Auto Transmission
  • SLX 1.6 CRDi DC81T FWD Wagon 4 Door [03/2009 to 08/2011] 85KW With Auto Transmission
  • SX 1.6 CRDi FWD 4 Door [09/2011 to 04/2012] 85KW With Auto or Manual Transmission
  • SX 1.6 CRDi DB51T FWD Hatchback 4 Door [10/2007 to 08/2011] 85KW With Auto or Manual Transmission

Description

Alfin, Oil Gallery Cooling
