Hyundai >> i30 >> FD >> 2.0 Litre 4 Cyl G4GC DOHC 16v >> SX, TROPHY 10/2007 - 04/2012 4 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai i30 FD SX, TROPHY [10/2007 to 04/2012] (2.0L G4GC 4 Cyl DOHC VVT MPFI)

Part
Nason logo

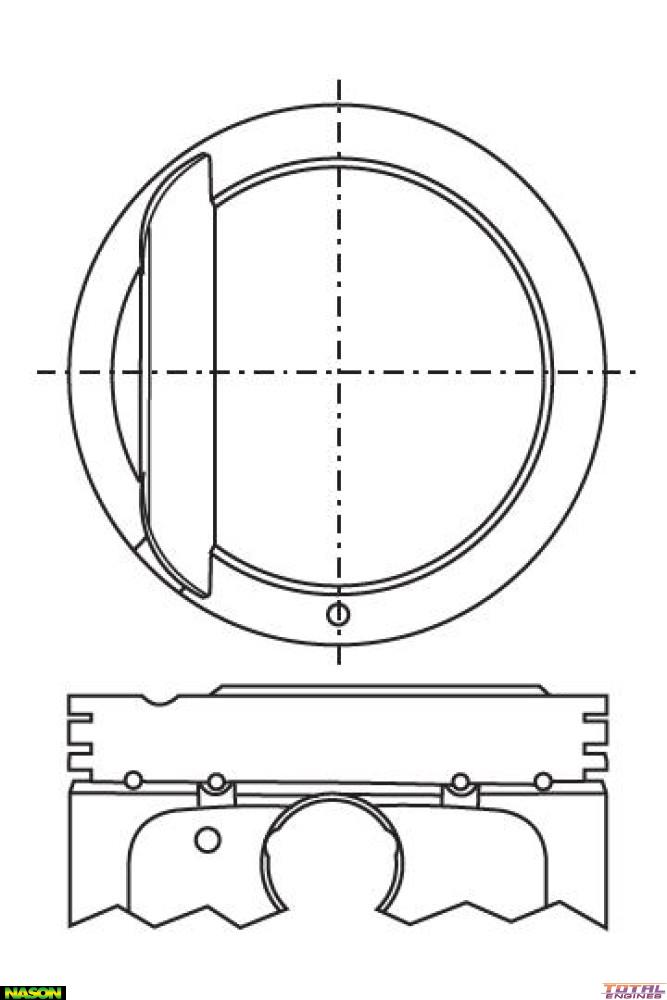

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 82.00mm
Size: 1.00mm / .040"
Head Type: Dome Top with 1 Valve Reliefs
Piston Type: Cast
Length: 57.50mm
Comp Height: 31.00mm + 0.30mm
Pin Size: 20.00mm x 59.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C4943
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Hyundai i30 FD (2.0 Litre 4 Cyl G4GC DOHC 16v):
  • SLX 2.0, Sportwagon 2.0 DC81E FWD Wagon 4 Door [03/2009 to 01/2013] 105KW With Auto Transmission
  • SLX, SR DC51E FWD Hatchback 4 Door [10/2007 to 04/2012] 105KW With Auto or Manual Transmission
  • SX 2.0, Trophy DB81E FWD Wagon 4 Door [03/2009 to 01/2013] 105KW With Auto or Manual Transmission
  • SX, TROPHY FWD 4 Door [10/2007 to 04/2012] 105KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
