Hyundai >> i30 >> PD >> 1.6 Litre 4 Cyl D4FB DOHC 16v >> GO H151D 12/2017 - 08/2020 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Hyundai i30 PD GO H151D Hatchback [12/2017 to 08/2020] (1.6L D4FB 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$520.61

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 77.20mm
Size: STD

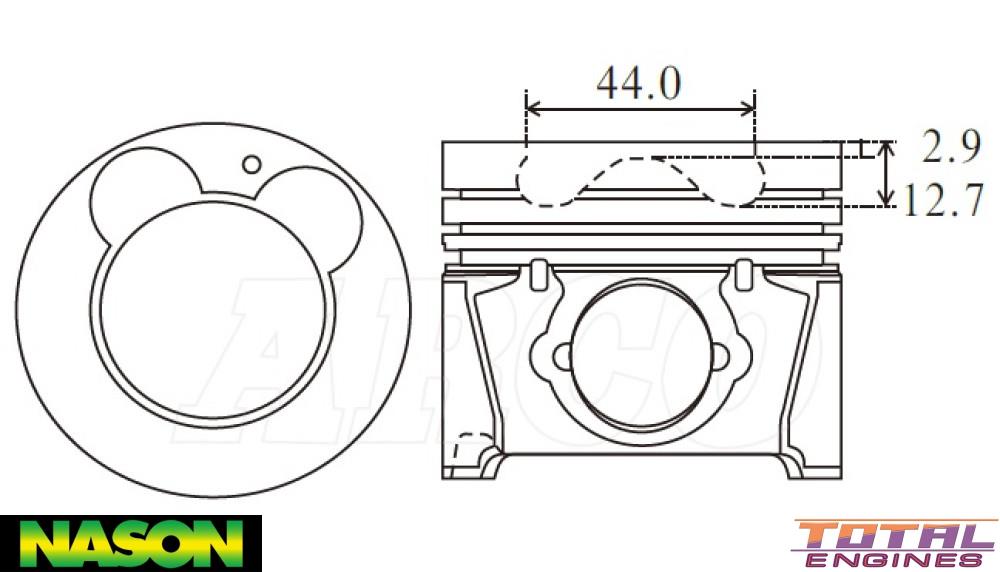

Head Type: Flat Top With Combustion Bowl & 2 Valve Reliefs
Piston Type: Cast
Length: 65.70mm
Comp Height: 42.00mm, -2.90mm, -12.70mm
Combustion Bowl OD: 44.00mm
Pin Size: 28.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.75mm
2nd Ring Width: 1.75mm
Oil Ring Width: 3.00mm
Ring Set: 43026-STD

Tick This part will fit the following Vehicles:

Hyundai i30 PD (1.6 Litre 4 Cyl D4FB DOHC 16v):
  • Elite H351D FWD Hatchback 4 Door [04/2017 Onwards] 100KW With Dual Clutch Transmission
  • GO H151D FWD Hatchback 4 Door [12/2017 to 08/2020] 100KW With Manual or Dual Clutch Transmission

Description

Alfin, Oil Gallery Cooling
