Isuzu >> Gemini >> JT >> 1.5 Litre 4 Cyl 4XC1 SOHC 8v >> 01/1985 - 12/1989 4 Door >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Isuzu Gemini JT [01/1985 to 12/1989] (1.5L 4XC1 4 Cyl SOHC CARB)

Part
Nason logo

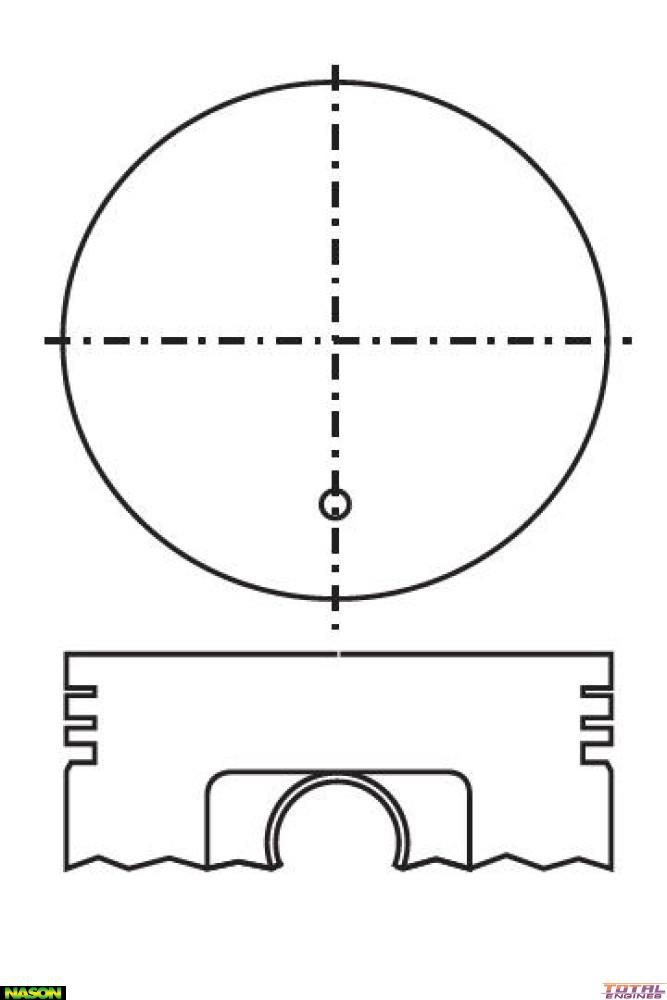

Nason Piston & Pin Set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4241
Oil Ring Width: 2.80mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 18.00mm x 66.00mm
Comp Height: 28.60mmm
Length: 59.00mm
Piston Type: Cast
Head Type: Flat Top
Size: 1.00mm / .040"
Std Bore Size: 77.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Isuzu Gemini JT (1.5 Litre 4 Cyl 4XC1 SOHC 8v):
  • FWD 4 Door [01/1985 to 12/1989] With Auto or Manual Transmission
  • JT151 FWD Sedan 4 Door [01/1990 to 12/1993] With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
