Mazda >> 323 >> BW >> 1.6 Litre 4 Cyl B6 DOHC 16v >> BW6W 06/1986 - 04/1988 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mazda 323 BW BW6W Wagon [06/1986 to 04/1988] (1.6L B6 4 Cyl DOHC CARB)

Part
Nason logo

Nason Piston & Pin Set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M4265 or 4265
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.00mm x 65.00mm
Comp Height: 31.90mm - 4.30mm
Length: 63.00mm
Piston Type: Cast

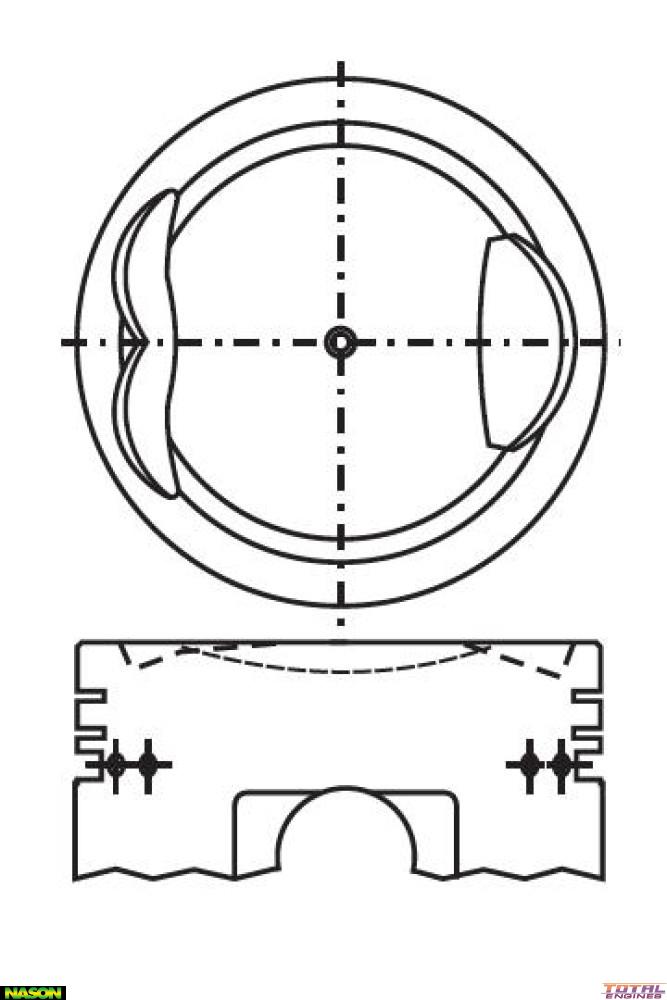

Head Type: Dish Top with 3 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 78.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mazda 323 BW (1.6 Litre 4 Cyl B6 DOHC 16v):
  • BW6W FWD Wagon 4 Door [06/1986 to 04/1988] 53KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
