Nason Piston & pin set Fits Mazda MX-6 GD 2WS Turbo GD102 Coupe [10/1987 to 09/1991] (2.2L F2T 4 Cyl SOHC Turbo MPFI)

Name: Nason Piston & pin set Fits Mazda MX-6 GD 2WS Turbo GD102 Coupe [10/1987 to 09/1991] (2.2L F2T 4 Cyl SOHC Turbo MPFI)
Brand: Nason
SKU: TE1324543
Availability: OutOfStock

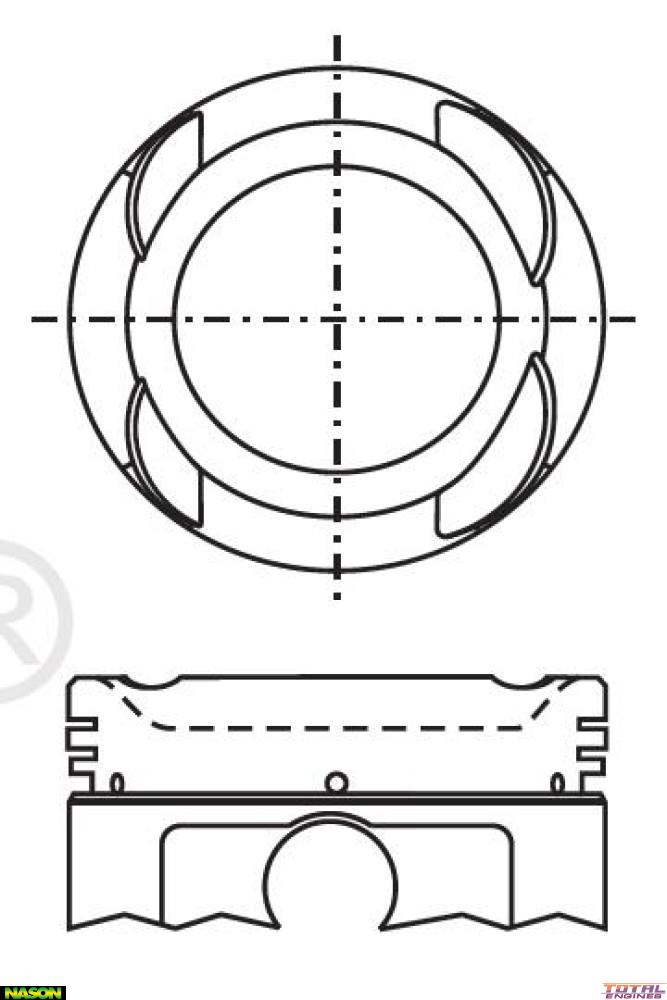

Nason Piston & pin set

Fitment Information:

Nason, 0.50mm Oversize

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	86.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	71.50mm
Comp Height:	36.50mm - 9.50mm
Pin Size:	22.00mm x 67.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2M5664 or 5664
Size:	0.50mm Oversize

This part will fit the following Vehicles:

Mazda 626 GD (2.2 Litre 4 Cyl F2T SOHC 12v):

2WS GD102 FWD Hatchback 4 Door [10/1987 to 12/1991] 100KW With Auto or Manual Transmission
4WS GD102 FWD Hatchback 4 Door [04/1989 to 04/1990] 100KW With Auto Transmission

Mazda MX-6 GD (2.2 Litre 4 Cyl F2T SOHC 12v):

2WS Turbo GD102 FWD Coupe 2 Door [10/1987 to 09/1991] 100KW With Auto or Manual Transmission
4WS Turbo GD102 FWD Coupe 2 Door [02/1989 to 10/1991] 100KW With Auto or Manual Transmission
