Mitsubishi >> Outlander >> ZE >> 2.4 Litre 4 Cyl 4G64 SOHC 8v >> LS, XLS CU4W 12/2002 - 05/2004 4 Door SUV >> ACL Aluglide Main bearing set

ACL Aluglide Main bearing set Fits Mitsubishi Outlander ZE LS, XLS CU4W SUV [12/2002 to 05/2004] (2.4L 4G64 4 Cyl SOHC MPFI)

Part
Thumbnail
Thumbnail
Thumbnail
Thumbnail
ACL Aluglide logo

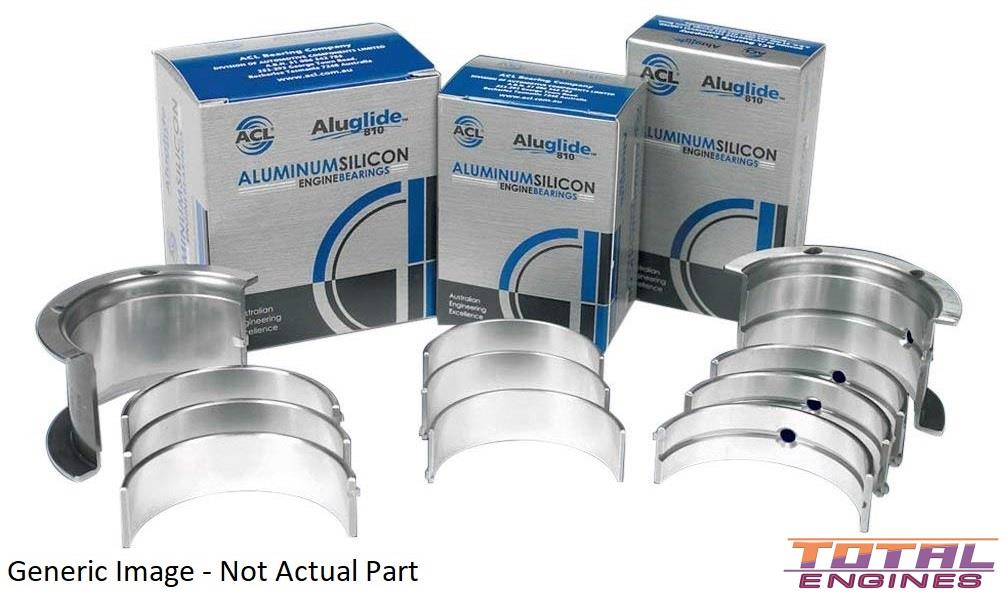

ACL Aluglide Main bearing set

Out Of Stock

Specifications
Main Bearing Set: 5M1228
Brand: ACL Aluglide
Manufacturer: ACL
Main Bearing (c): 1186A
Half Type: Upper & Lower
OE Part Number 1: MD195916
Manufacturer: ACL
Min Std Shaft Size: 2.2435in / 56.985mm
Max Std Shaft Size: 2.2441in / 57mm
Min Std Tunnel Size: 2.4016in / 61mm
Max Std Tunnel Size: 2.4024in / 61.021mm
Max Wall At Crown: 0.0783in / 1.99mm
Max Overall Length: 0.8268in / 21mm
Min Vertical Oil Clearance: 0.0008in / 0.02mm
Max Vertical Oil Clearance: 0.0032in / 0.082mm
Material: F810
Main Bearing (c): 1187A(F)
Half Type: Identical Halves
OE Part Number 1: MD195921
Manufacturer: ACL
Min Std Shaft Size: 2.2435in / 56.985mm
Max Std Shaft Size: 2.2441in / 57mm
Min Std Tunnel Size: 2.4016in / 61mm
Max Std Tunnel Size: 2.4024in / 61.021mm
Max Wall At Crown: 0.0783in / 1.99mm
Max Overall Length: 1in / 25.4mm
Min Vertical Oil Clearance: 0.0008in / 0.02mm
Max Vertical Oil Clearance: 0.0032in / 0.081mm
Material: F810

Tick This part will fit the following Vehicles:

Mitsubishi Outlander ZE (2.4 Litre 4 Cyl 4G64 SOHC 8v):
  • LS, XLS CU4W 4WD SUV 4 Door [12/2002 to 05/2004] 100KW With Auto Transmission

Description

With 1 Flanged Shell
