Mitsubishi >> Outlander >> ZH >> 2.4 Litre 4 Cyl 4B12 DOHC 16v >> CW5W 10/2006 - 10/2012 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Outlander ZH CW5W SUV [10/2006 to 10/2012] (2.4L 4B12 4 Cyl DOHC VVT MPFI)

Part
Nason logo

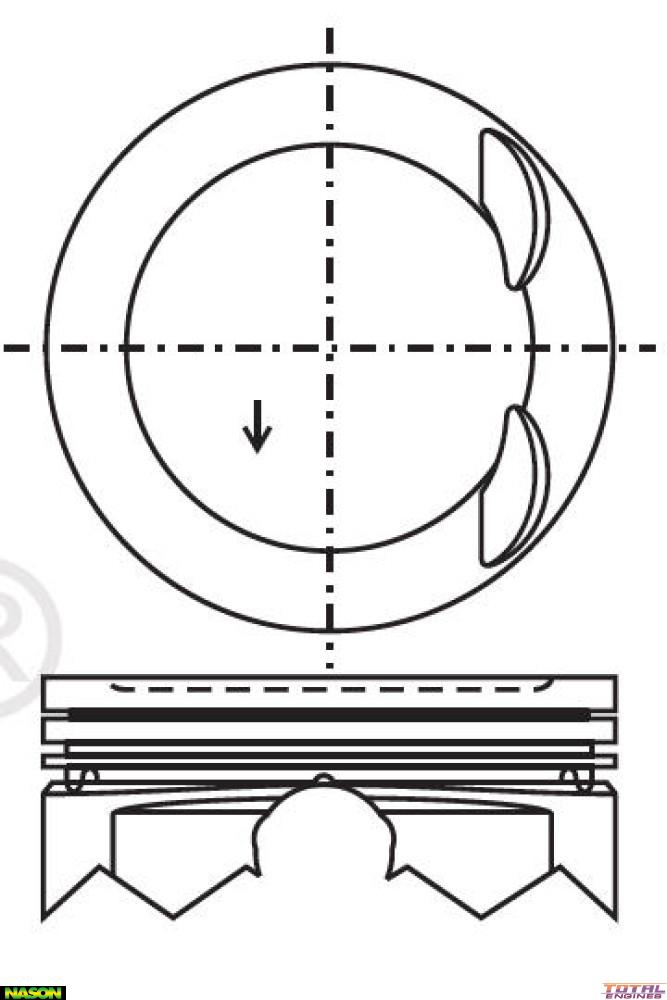

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 88.00mm
Size: .50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 51.50mm
Comp Height: 27.50mm - 1.70mm
Pin Size: 21.00mm x 58.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5297
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Mitsubishi Outlander ZH (2.4 Litre 4 Cyl 4B12 DOHC 16v):
  • CW5W 4WD SUV 4 Door [10/2006 to 10/2012] 125KW With Continuously Variable Transmission
  • CW5W 4WD SUV 4 Door [11/2007 to 10/2012] 125KW With Manual Transmission
  • LS CW5W FWD SUV 4 Door [08/2010 to 10/2012] 125KW With Continuously Variable Transmission
  • LS CW5W FWD SUV 4 Door [08/2010 to 10/2012] 125KW With Manual Transmission
  • LS, Xls, VR-X CW5W 4WD SUV 4 Door [10/2006 to 10/2012] 125KW With Continuously Variable Transmission

Description

Nason, 0.50mm Oversize
