Mitsubishi >> Triton >> MG >> 2.6 Litre 4 Cyl 4G54 SOHC 8v >> MG3H23 06/1989 - 05/1990 2 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Triton MG MG3H23 Wellside [06/1989 to 05/1990] (2.6L 4G54 4 Cyl SOHC CARB)

Part
Nason logo

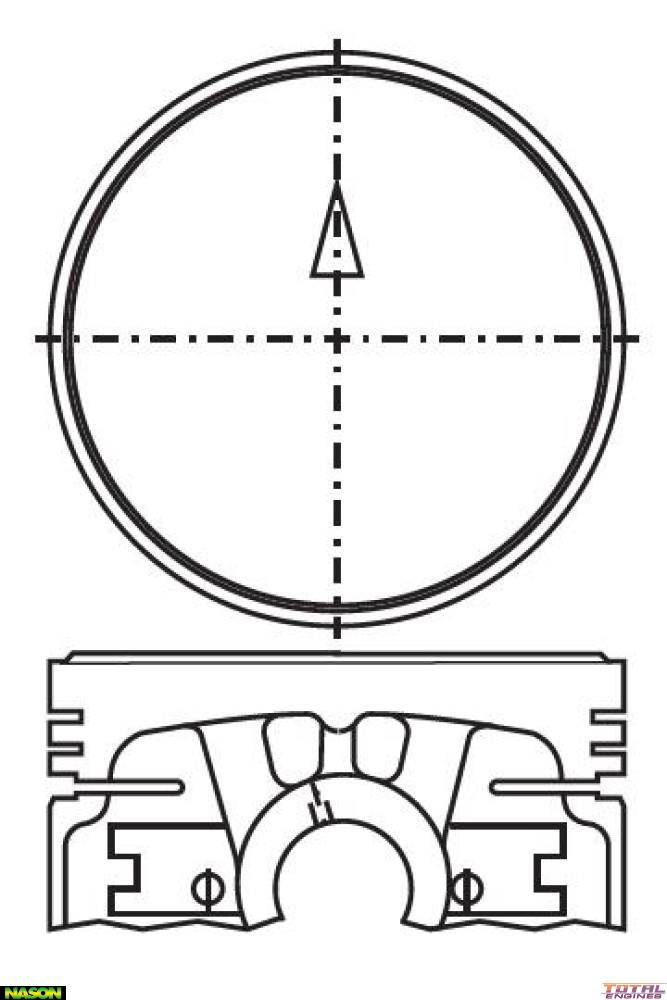

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C5667 or 5667
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 79.00mm
Comp Height: 36.00mm + 0.30mm
Length: 78.30mm
Piston Type: Cast
Head Type: Flat Top
Size: 1.00mm / .040"
Std Bore Size: 91.10mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mitsubishi Triton MG (2.6 Litre 4 Cyl 4G54 SOHC 8v):
  • 4WD 4 Door [06/1989 to 05/1990] 84KW With Manual Transmission
  • MG3H23 RWD Wellside 2 Door [06/1989 to 05/1990] 79KW With Manual Transmission
  • MG3M20 RWD Cab Chassis 2 Door [06/1989 to 05/1990] 79KW With Manual Transmission
  • MG3M27 RWD Wellside 2 Door [06/1989 to 05/1990] 79KW With Manual Transmission
  • MG3M47 RWD Wellside 4 Door [06/1989 to 05/1990] 79KW With Manual Transmission
  • MG3V20 4WD Cab Chassis 2 Door [06/1989 to 05/1990] 84KW With Manual Transmission
  • MG3V27 4WD Wellside 2 Door [06/1989 to 05/1990] 84KW With Manual Transmission
  • MG3W23 4WD Wellside 2 Door [06/1989 to 05/1990] 84KW With Manual Transmission

Description

Nason, 1.00mm Oversize
