Mitsubishi >> Triton >> MN >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> GLX KA4 07/2008 - 04/2015 2 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Triton MN GLX KA4 Ute [07/2008 to 04/2015] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons only - Suits Engines With 44mm Combustion Bowl

$717.50

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm

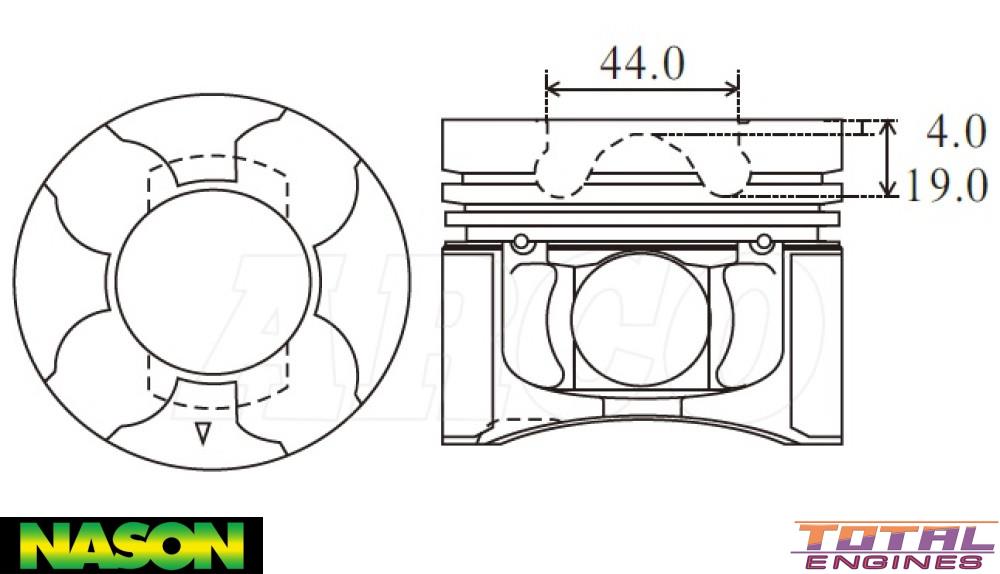

Comp Height: 48.20mm, -4.00mm -19.00mm
Combustion Bowl OD: 44.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 4.00mm
Ring Set: 33979-STD
Size: Suits Engines With 44mm Combustion Bowl

Tick This part will fit the following Vehicles:

Mitsubishi Triton MN (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • GLX KA4 RWD Ute 2 Door [07/2008 to 04/2015] 100KW With Manual Transmission
  • GLX KA4 RWD Ute 2 Door [07/2008 to 04/2015] 100KW With Auto Transmission
  • GLX, GL KA4 RWD Ute 2 Door [07/2008 to 04/2015] 100KW With Manual Transmission
  • KA4 RWD Wellside 4 Door [07/2008 to 04/2015] 100KW With Manual Transmission
  • KA4 RWD Wellside 4 Door [07/2008 to 04/2015] 100KW With Auto Transmission
  • KA4 RWD Wellside 4 Door [01/2011 to 04/2015] 100KW With Manual Transmission

Description

Nason Piston & Pin Set STD Size – Premium Replacement for Mitsubishi Triton

Upgrade your engine's performance with the Nason Piston & Pin Set, designed to meet the rigorous demands of your Mitsubishi Triton. Built with precision engineering, this set ensures compatibility and enhanced efficiency for select models while promising durability and reliability for long-lasting driving experiences.

Product Features:

  • Engineered for Precision: Our piston set includes four high-quality pistons and pins, specifically designed for the Mitsubishi Triton MN 2.5L range. With a standard bore size of 91.10mm, these pistons are cast for optimal strength and resilience.
  • Specialized Design: The unique combustion bowl has an outer diameter of 44mm, promoting efficient combustion and improved engine performance. The four valve reliefs enhance airflow, making this set perfect for maximizing your vehicle's output.
  • Superior Cooling and Durability: Featuring an Alfin design and an anodized head, this piston and pin set provides excellent oil gallery cooling, ensuring your engine runs smoothly even under high-stress conditions.
  • Tailored Fit: Each piston pin is crafted as full floating with a size of 32.00mm x 75.00mm, ensuring seamless installation and excellent engine operation. The skirt coating adds an additional layer of durability and reduces friction, resulting in enhanced efficiency.
  • Comprehensive Ring Set: The package includes a complete ring set (33979-STD) with a half keystone top ring width of 2.50mm, a second ring width of 2.00mm, and an oil ring width of 4.00mm, providing superior sealing and extending engine life.

Compatibility:

This Nason Piston & Pin Set fits the following Mitsubishi Triton models with a 100KW power rating:

  • Mitsubishi Triton MN 2.5L GLX KA4 RWD
  • Mitsubishi Triton MN 2.5L GLX, GL KA4 RWD
  • Mitsubishi Triton MN 2.5L KA4 RWD

Important:

This product is NOT compatible with the following Mitsubishi Triton vehicles:

  • Triton MN 2.5L GL-R, GLX-R, Activ KB4 4WD 131kw
  • Triton MN 2.5L GLS, GLX-R KB4 4WD 131kw
  • Triton MN 2.5L GLX Club KB4 4WD 131kw
  • Triton MN 2.5L GLX KB4 4WD 131kw

Specifications:

  • Length: 78.20mm
  • Compression Height: 48.20mm, -4.00mm, -19.00mm
  • Piston to Bore: Refer to label on box
  • One Line On The Piston Pin Boss = Cylinders 1 and 3
  • Two Lines On The Piston Pin Boss = Cylinders 2 and 4

Invest in the Nason Piston & Pin Set STD Size today and experience the perfect blend of quality and performance for your Mitsubishi Triton. Perfect installation, dependable functionality, and a boost to your engine’s power are just a click away!
