Renault >> Scenic >> J84 >> 1.9 Litre 4 Cyl F9Q 803 SOHC 8v >> 07/2007 - 03/2009 4 Door Wagon >> Nason Piston & Ring Set

Nason Piston & Ring Set Fits Renault Scenic J84 Wagon [07/2007 to 03/2009] (1.9L F9Q 803 4 Cyl SOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Ring Set

Fitment Information:

Inc Rings - Nason, STD Size

Out Of Stock

Specifications
Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 80.00mm

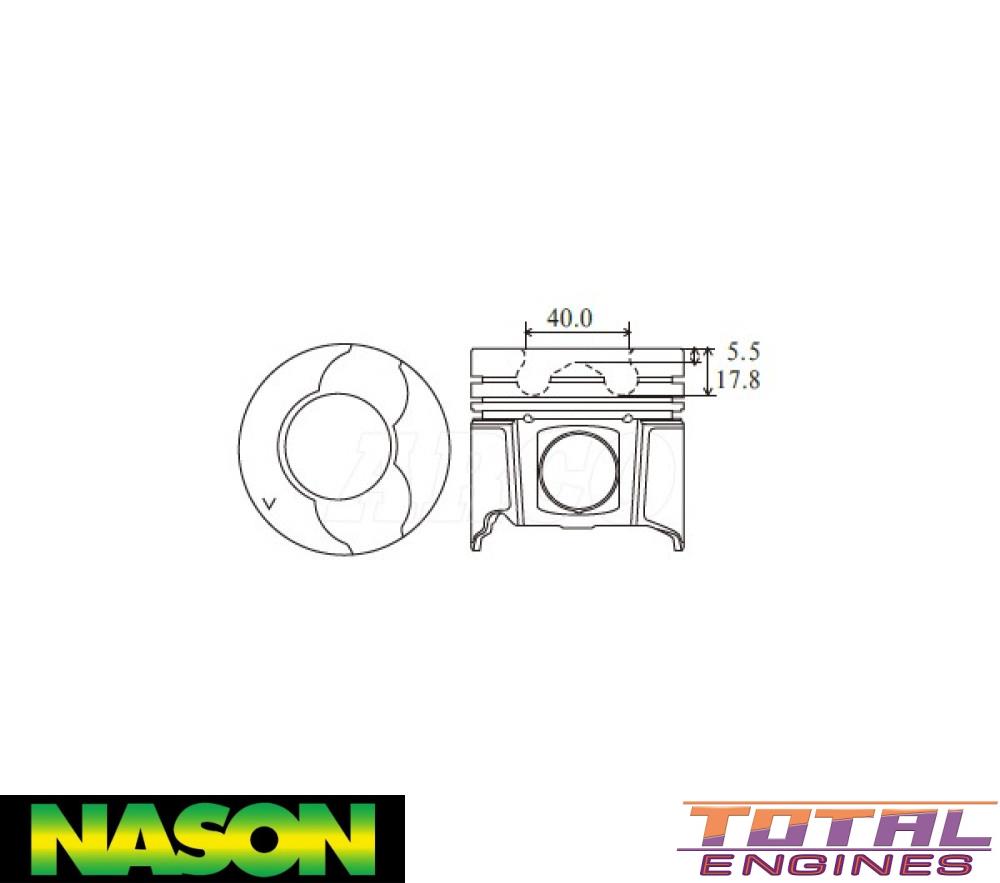

Head Type: Dish top with two valve reliefs
Piston Type: Cast
Length: 77.00mm
Comp Height: 47.00mm - 5.50mm -17.80mm
Combustion Bowl OD: 40.00mm
Pin Size: 28.00mm x 64.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm

Tick This part will fit the following Vehicles:

Renault Scenic J84 (1.9 Litre 4 Cyl F9Q 803 SOHC 8v):
  • FWD Wagon 4 Door [07/2007 to 03/2009] 96KW With Auto Transmission

Description

Inc Rings - Nason, STD Size
