Renault >> Trafic >> X83 >> 1.9 Litre 4 Cyl F9Q 870/2 SOHC 8v >> LWB L2H1 04/2004 - 04/2007 3 Door Van >> Nason Piston & ring set

Nason Piston & ring set Fits Renault Trafic X83 LWB L2H1 Van [04/2004 to 04/2007] (1.9L F9Q 870/2 4 Cyl SOHC Turbo CRD)

Part
Nason logo

Nason Piston & ring set

Fitment Information:

Inc Rings - Nason, STD Size

Out Of Stock

Specifications

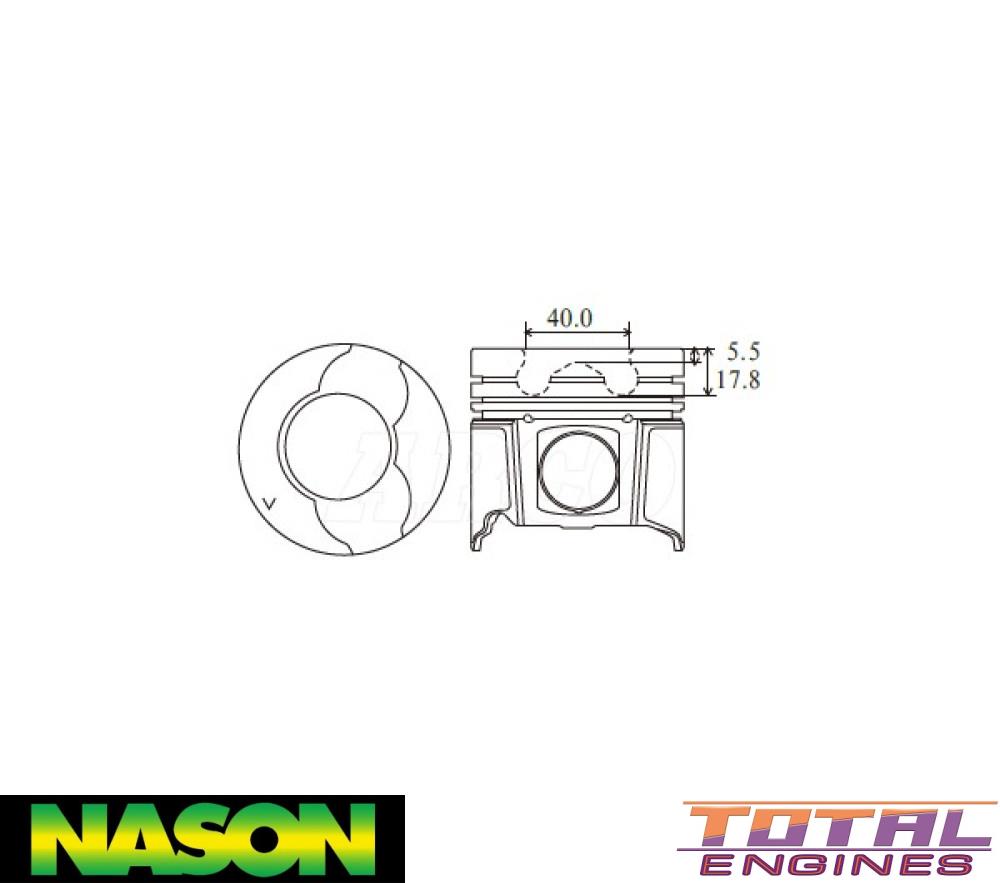

Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 80.00mm
Size: STD
Head Type: Dish top with two valve reliefs
Piston Type: Cast
Length: 77.00mm
Comp Height: 47.00mm - 5.50mm -17.80mm
Combustion Bowl OD: 40.00mm
Pin Size: 28.00mm x 64.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm

Tick This part will fit the following Vehicles:

Renault Trafic X83 (1.9 Litre 4 Cyl F9Q 870/2 SOHC 8v):
  • LWB High Roof L2H2 FWD Van 3 Door [04/2004 to 04/2007] 74KW With Manual Transmission
  • LWB L2H1 FWD Van 3 Door [04/2004 to 04/2007] 74KW With Manual Transmission
  • SWB L1H1 FWD Van 3 Door [04/2004 to 04/2007] 74KW With Manual Transmission

Description

Inc Rings - Nason, STD Size
