Subaru >> GL >> (No Series) >> 1.8 Litre Boxer 4 EA82 SOHC 8v >> AN5 09/1988 - 06/1990 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Subaru GL AN5 Wagon [09/1988 to 06/1990] (1.8L EA82 Boxer4 SOHC EFI)

Part
Nason logo

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2M5364 or 5364
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 21.00mm x 70.00mm
Comp Height: 31.50mm
Length: 65.00mm
Piston Type: Cast

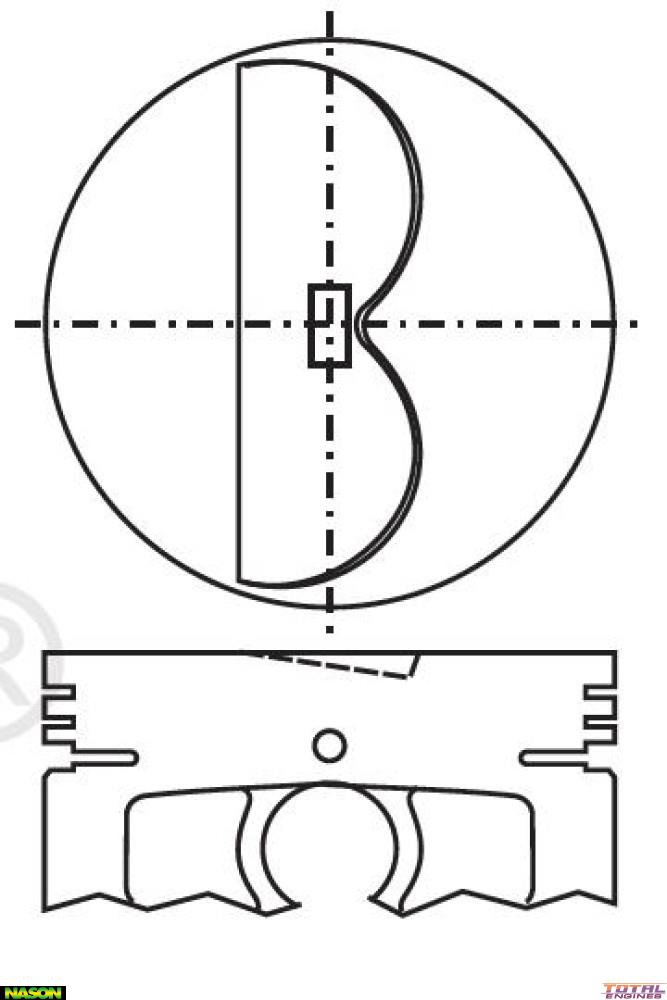

Head Type: Flat Top with 2 Valve Reliefs
Std Bore Size: 92.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Subaru GL (1.8 Litre Boxer 4 EA82 SOHC 8v):
  • AN5 4WD Wagon 4 Door [09/1988 to 06/1990] 70KW With Auto or Manual Transmission
Subaru Omega (1.8 Litre Boxer 4 EA82 SOHC 8v):
  • AN5 4WD Wagon 4 Door [01/1988 to 12/1993] 70KW With Manual Transmission

Description

Nason, STD Size
