Suzuki >> Escudo >> (No Series) >> 1.6 Litre 4 Cyl G16A SOHC 16v >> TD02W 11/1997 - 03/2000 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Escudo TD02W SUV [11/1997 to 03/2000] (1.6L G16A 4 Cyl SOHC SPFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Nason, 0.50mm Oversize

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: 0.50mm / .020"

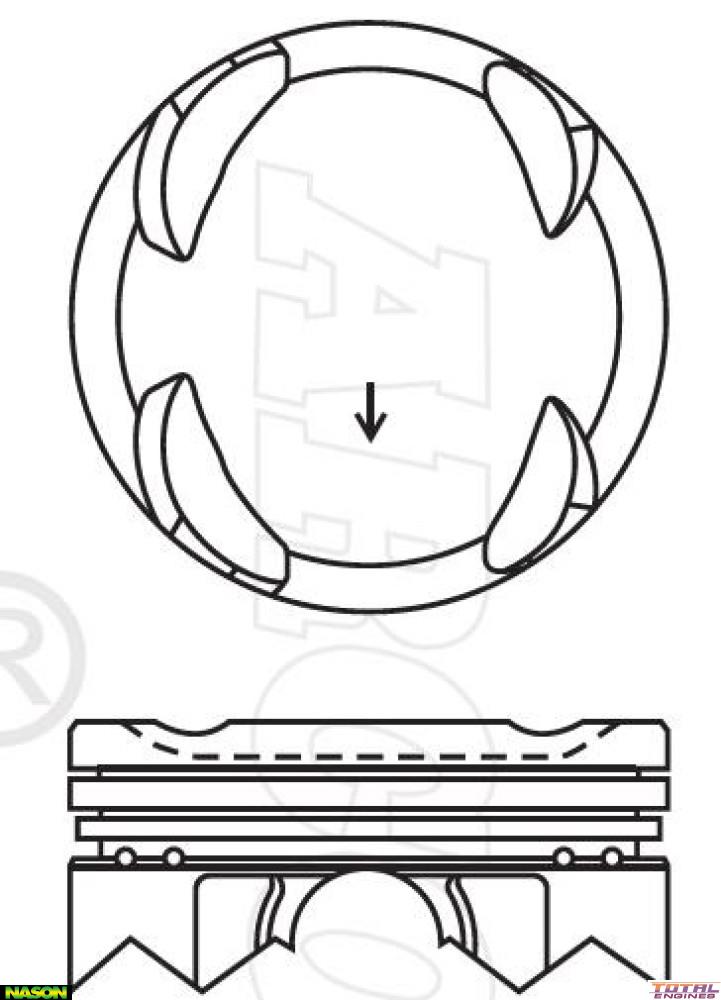

Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.30mm
Comp Height: 28.30mm - 4.10mm
Pin Size: 19.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.50mm
Ring Set: 2C4901
Size: 0.50mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Suzuki Escudo (No Series) (1.6 Litre 4 Cyl G16A SOHC 16v):
  • CONVERTIBLE TA01R 4WD Soft Top 2 Door [08/1990 to 10/1997] 74KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Suzuki Escudo (1.6 Litre 4 Cyl G16A SOHC 16v):
  • TD02W 4WD SUV 4 Door [11/1997 to 03/2000] 79KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
