Suzuki >> SJ410 >> SJ >> 1.0 Litre 4 Cyl F10A SOHC 8v >> SJ410 01/1984 - 12/1987 2 Door Hardtop >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki SJ410 SJ SJ410 Hardtop [01/1984 to 12/1987] (1.0L F10A 4 Cyl SOHC CARB)

Part
Nason logo

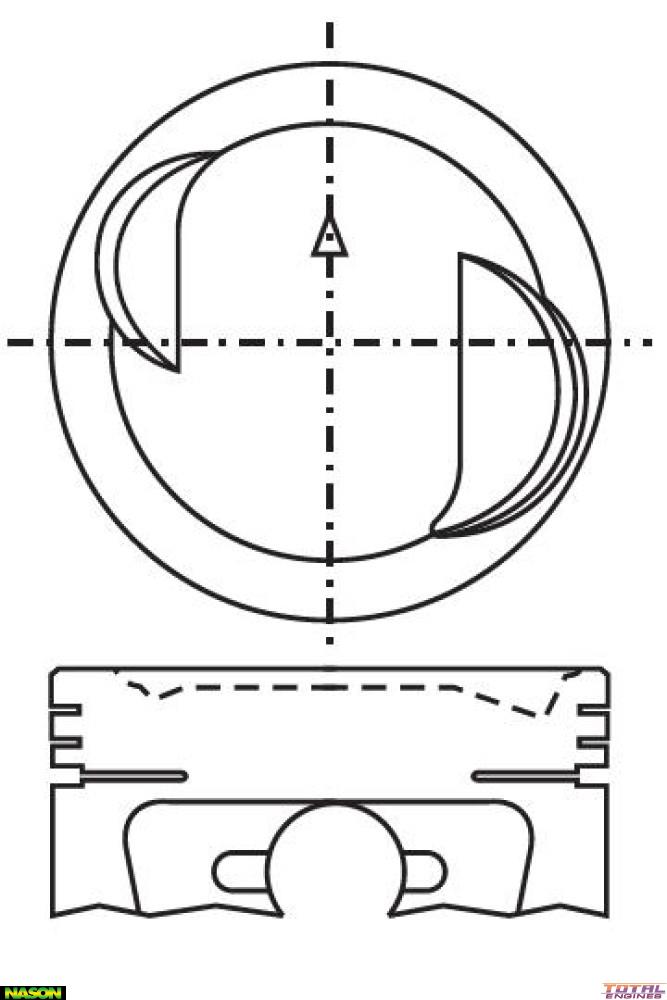

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 65.50mm
Size: 0.50mm / .020"
Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 55.00mm
Comp Height: 24.50mm - 2.00mm
Pin Size: 16.00mm x 53.50mm
Pin Type: Fill Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4234 or 4234
Size: 0.50mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Suzuki Farmworker (No Series) (1.0 Litre 4 Cyl F10A SOHC 8v):
  • GC21T FWD Utility 2 Door [01/1993 to 12/1997] 34KW With Manual Transmission

Tick This part will fit the following Vehicles:

Suzuki Carry (1.0 Litre 4 Cyl F10A SOHC 8v):
  • DA21T FWD Ute 3 Door [01/1985 to 12/1990] With Manual Transmission
  • DA21V FWD Van 3 Door [01/1985 to 12/1990] With Manual Transmission
Suzuki Sierra LJ80 (1.0 Litre 4 Cyl F10A SOHC 8v):
  • SJ41 4WD Hardtop 2 Door [07/1981 to 12/1987] 34KW With Manual Transmission
  • SJ41 4WD Softtop 2 Door [01/1982 to 12/1987] 34KW With Manual Transmission
Suzuki Sierra MG410 (1.0 Litre 4 Cyl F10A SOHC 8v):
  • Stockman GC21T 4WD Ute 2 Door [01/1990 to 12/2000] With Manual Transmission
Suzuki Sierra SJ410 (1.0 Litre 4 Cyl F10A SOHC 8v):
  • SJ40 4WD Ute 2 Door [01/1981 to 12/1988] With Manual Transmission
Suzuki SJ410 SJ (1.0 Litre 4 Cyl F10A SOHC 8v):
  • SJ410 4WD Hardtop 2 Door [01/1984 to 12/1987] With Manual Transmission

Description

Nason, 0.50mm Oversize
