Toyota >> Camry >> SV22 >> 2.0 Litre 4 Cyl 3S-FC DOHC 16v >> 09/1989 - 06/1991 4 Door Sedan >> Nason Piston & ring set

Nason Piston & ring set Fits Toyota Camry SV22 Sedan [09/1989 to 06/1991] (2.0L 3S-FC 4 Cyl DOHC CARB)

Part
Nason logo

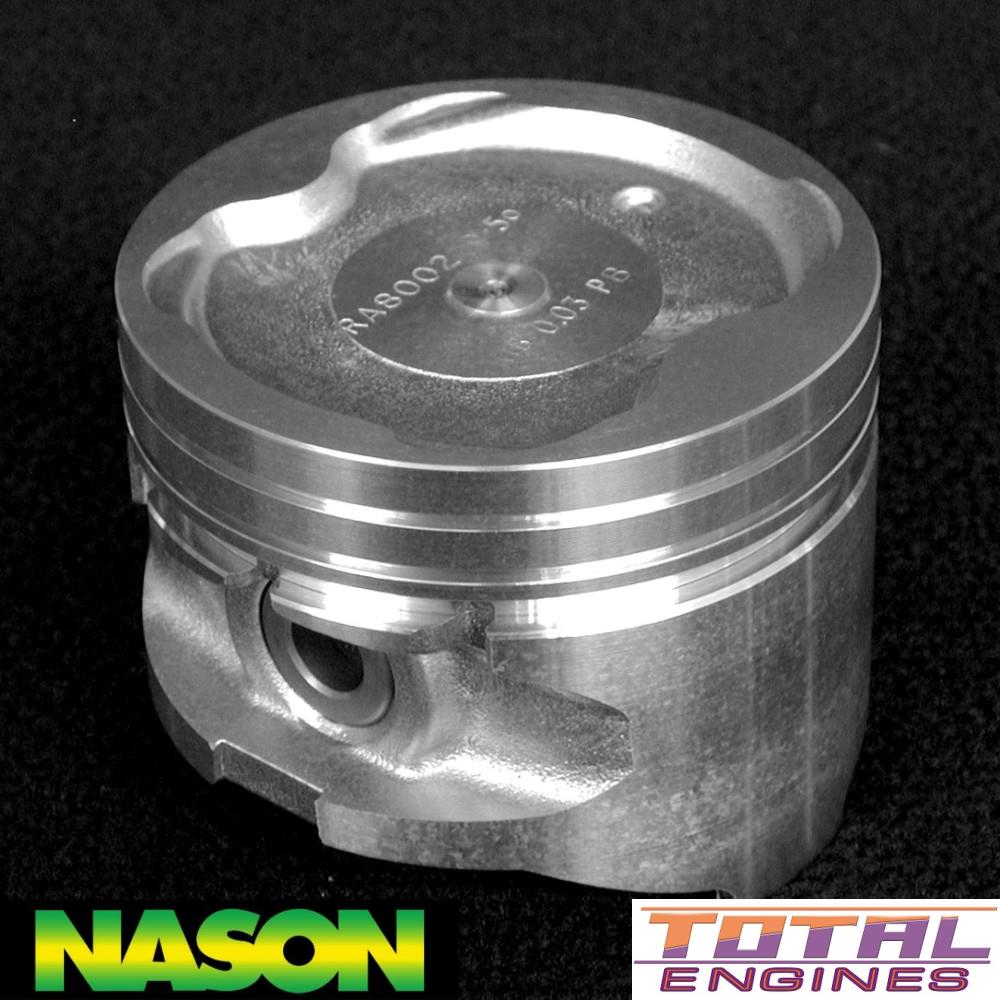

Nason Piston & ring set

Fitment Information:

Inc Rings - Nason, STD Size Press Fit Pin, can Use 4P1214

$172.29

Specifications
Overall Length: 68.4mm
Comp HT: 35.4mm
Bowl Depth: -4.4mm
Locking Device: Press Fit
Pin Dim: 20.0mm Length 66.0mm
Top Ring: 1.5mm
2nd Ring: 1.5mm
Oil Ring: 4.0mm
Recommended Piston To Bore Clearance: 0.04mm / 0.0016in
Measuring Point Dim From Bottom Skirt: 29.0mm / 1.1417in

Tick This part will fit the following Vehicles:

Toyota Camry SV22 (2.0 Litre 4 Cyl 3S-FC DOHC 16v):
  • FWD Sedan 4 Door [09/1989 to 06/1991] 82KW With Auto or Manual Transmission
  • FWD Wagon 4 Door [09/1989 to 06/1991] 82KW With Auto or Manual Transmission

Description

Inc Rings - Nason, STD Size
