Toyota >> Camry >> VCV10 >> 3.0 Litre V6 3VZ-FE DOHC 24v >> Vienta 03/1993 - 09/1995 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Camry VCV10 Vienta Wagon [03/1993 to 09/1995] (3.0L 3VZ-FE V6 DOHC EFI)

Part
Nason logo

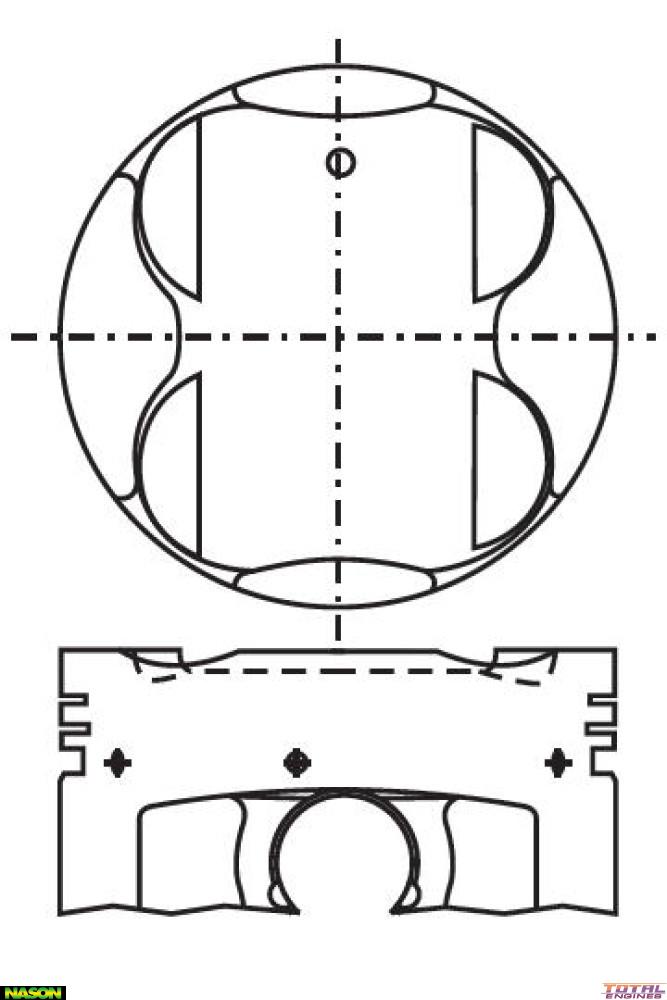

Nason Piston & pin set

$309.52

Specifications
Ring Set: 2M4689 or 4689
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 22.00mm x 62.00mm
Comp Height: 34.00mm - 3.00mm
Length: 62.00mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: Std
Std Bore Size: 87.50mm
Piston Set: 6 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Camry VCV10 (3.0 Litre V6 3VZ-FE DOHC 24v):
  • FWD Sedan 4 Door [01/1991 to 12/1995] 136KW With Auto Transmission
  • Vienta FWD Wagon 4 Door [03/1993 to 09/1995] 136KW With Auto Transmission
Toyota Camry VDV10 (3.0 Litre V6 3VZ-FE DOHC 24v):
  • Vienta VCV10 FWD Sedan 4 Door [03/1993 to 09/1995] 136KW With Auto or Manual Transmission

Description

Nason, STD Size
