Toyota >> Carina >> AT150 >> 1.5 Litre 4 Cyl 3ALU SOHC 8v >> 05/1984 - 04/1988 4 Door Liftback >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Carina AT150 Liftback [05/1984 to 04/1988] (1.5L 3ALU 4 Cyl SOHC CARB)

Part
Nason logo

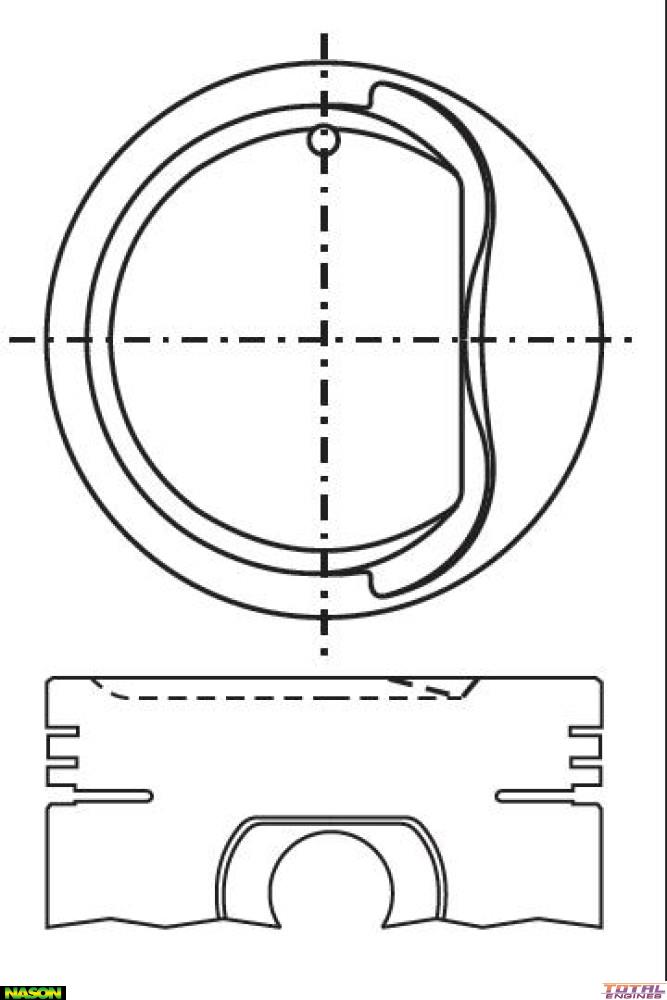

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 77.50mm
Size: Std
Head Type: Dish Top with 2 Valve Relief
Piston Type: Cast
Length: 61.00mm
Comp Height: 31.00mm - 2.80mm
Pin Size: 20.00mm x 65.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C6140 or 6140

Tick This part will fit the following Vehicles:

Toyota Carina AT150 (1.5 Litre 4 Cyl 3ALU SOHC 8v):
  • FWD Liftback 4 Door [05/1984 to 04/1988] With Auto or Manual Transmission

Description

Nason, STD Size
