Toyota >> Hiace >> LH24R >> 2.2 Litre 4 Cyl L SOHC 8v >> LH24 05/1982 - 07/1985 3 Door Commercial Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hiace LH24R LH24 Commercial Van [05/1982 to 07/1985] (2.2L 4 Cyl SOHC Diesel Inj)

Part
Nason logo

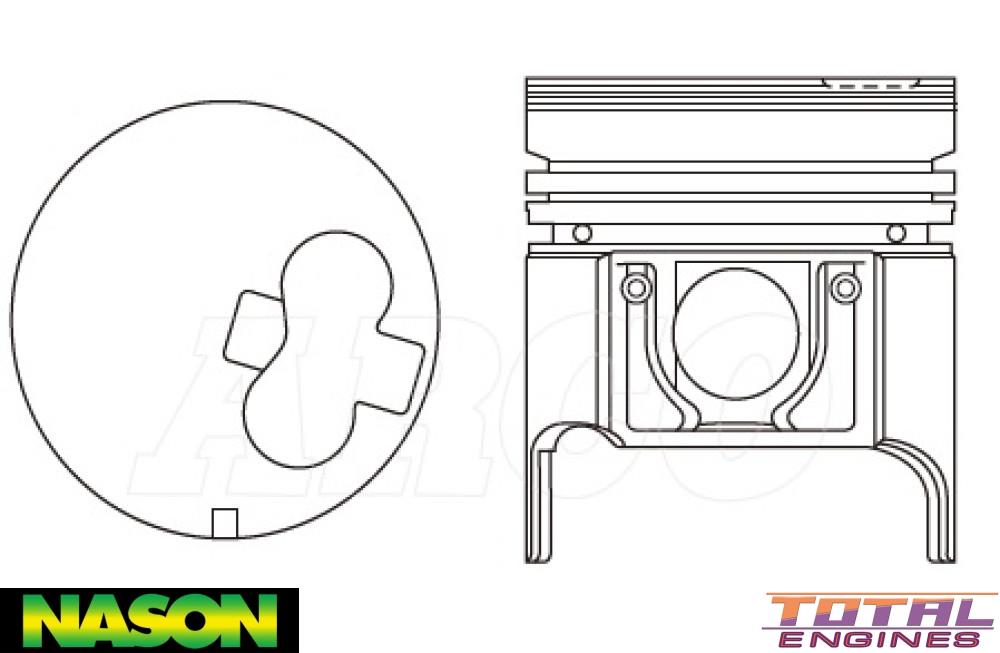

Nason Piston & Pin Set

Fitment Information:

Oversize 1.00 - Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 90.00mm
Size: 1.00mm
Head Type: Clover Leaf Combustion Relief
Piston Type: Cast
Length: 99.00mm
Comp Height: 52.00mm, -1.40mm
Pin Size: 27.00mm x 73.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 35862-1.00

Tick This part will fit the following Vehicles:

Toyota Hiace LH20R (2.2 Litre 4 Cyl L SOHC 8v):
  • RWD Commercial Van 3 Door [09/1979 to 10/1982] With Transmission
Toyota Hiace LH24R (2.2 Litre 4 Cyl L SOHC 8v):
  • LH24 RWD Commercial Van 3 Door [05/1982 to 07/1985] With Transmission
Toyota Hiace LH30R (2.2 Litre 4 Cyl L SOHC 8v):
  • LH30 RWD Commercial Van 3 Door [03/1981 to 12/1985] 48KW With Auto or Transmission
Toyota Hiace LH50R (2.2 Litre 4 Cyl L SOHC 8v):
  • LH50 RWD Commercial Van 3 Door [12/1982 to 08/1985] With Auto or Transmission
Toyota Hiace LH60R (2.2 Litre 4 Cyl L SOHC 8v):
  • LH60 RWD Commercial Van 3 Door [12/1982 to 01/1984] 48KW With Transmission
Toyota Hiace LH70R (2.2 Litre 4 Cyl L SOHC 8v):
  • LH70 RWD Minibus 2 Door [12/1982 to 01/1984] With Transmission

Description

Combustion Bowl OD
