Toyota >> Hilux >> GUN126R >> 2.8 Litre 4 Cyl 1GD-FTV DOHC 16v >> SR5 Cruiser 05/2020 - Onwards 4 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Hilux GUN126R SR5 Cruiser Wellside [05/2020 Onwards] (2.8L 1GD-FTV 4 Cyl DOHC Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

$691.76

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 92.00mm
Size: 0.50mm / .020"

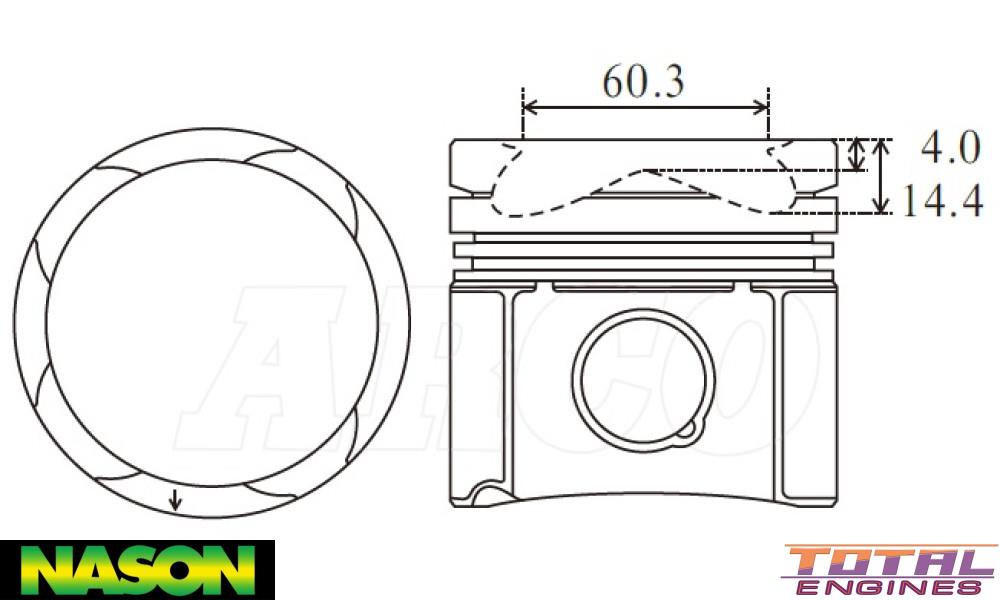

Head Type: Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type: Cast
Length: 78.20mm
Comp Height: 53.20mm, -4.00mm, -14.40mm
Combustion Bowl OD: 60.30mm
Pin Size: 31.00mm x 67.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 36050-0.50

Tick This part will fit the following Vehicles:

Toyota Hilux GUN126R (2.8 Litre 4 Cyl 1GD-FTV DOHC 16v):
  • 4WD Wellside 4 Door [10/2015 to 04/2020] 130KW With Auto or Manual Transmission
  • SR 4WD Cab Chassis 2 Door [10/2015 to 04/2020] 130KW With Auto or Manual Transmission
  • SR 4WD Cab Chassis 4 Door [10/2015 to 04/2020] 130KW With Auto or Manual Transmission
  • SR 4WD Cab Chassis 2 Door [05/2020 Onwards] 150KW With Auto or Manual Transmission
  • SR Extra CAB 4WD Cab Chassis 4 Door [10/2015 to 04/2020] 130KW With Auto or Manual Transmission
  • SR Extra CAB 4WD Cab Chassis 4 Door [05/2020 Onwards] 150KW With Auto or Manual Transmission
  • SR, SR5+ 4WD Cab Chassis 4 Door [05/2020 Onwards] 150KW With Auto or Manual Transmission
  • SR5 4WD Wellside 4 Door [05/2020 Onwards] 150KW With Auto or Manual Transmission
  • SR5 Cruiser 4WD Wellside 4 Door [05/2020 Onwards] 150KW With Auto Transmission
  • SR5 Cruiser Extra CAB 4WD Wellside 4 Door [05/2020 Onwards] 150KW With Auto Transmission
  • SR5 Extra CAB 4WD Wellside 4 Door [10/2015 to 04/2020] 130KW With Auto or Manual Transmission
  • SR5 Extra CAB 4WD Wellside 4 Door [05/2020 Onwards] 150KW With Auto or Manual Transmission

Description

Alfin, Oil Gallery Cooling
