Toyota >> Hilux >> KUN25R >> 2.5 Litre 4 Cyl 2KD-FTV DOHC 16v >> KUN25 08/2005 - 09/2015 4 Door Ute/Dual Cab >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Hilux KUN25R KUN25 Ute/Dual Cab [08/2005 to 09/2015] (2.5L 2KD-FTV 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

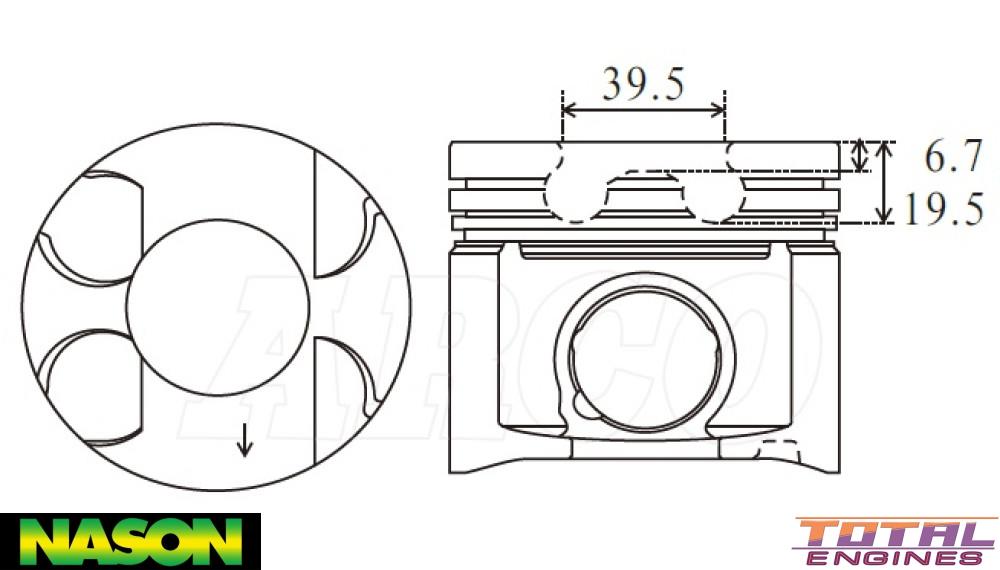

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 92.00mm
Head Type: Combustion Bowl With 4 Valve Relief
Piston Type: Cast
Length: 82.20mm
Comp Height: 54.20mm, -6.70mm, -19.50mm
Combustion Bowl OD: 39.50mm
Pin Size: 34.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 35986-STD

Tick This part will fit the following Vehicles:

Toyota Hilux KUN25R (2.5 Litre 4 Cyl 2KD-FTV DOHC 16v):
  • KUN25 4WD Ute/Dual Cab 4 Door [08/2005 to 09/2015] With Manual Transmission
  • KUN25 4WD Ute/Dual Cab 4 Door [08/2005 to 09/2015] With Manual Transmission

Description

Alfin Insert, With Oil Gallery Cooling
