Toyota >> Hilux >> RZN147R >> 2.0 Litre 4 Cyl 1RZ-E SOHC 8v >> Workmate 11/1997 - 12/2000 2 Door Ute >> Nason Piston & pin set

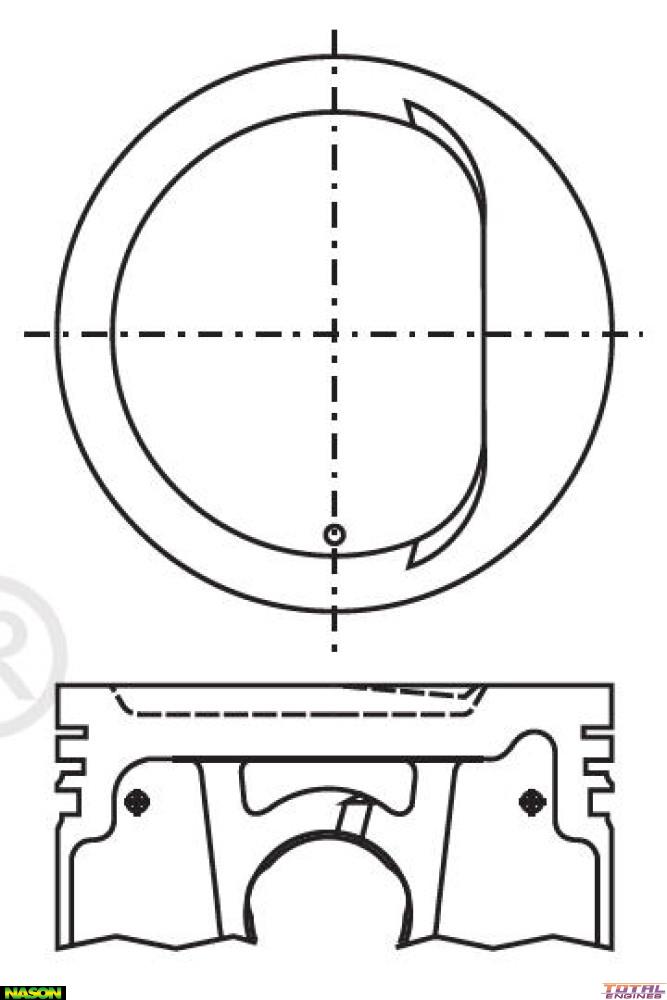

Nason Piston & pin set Fits Toyota Hilux RZN147R Workmate Ute [11/1997 to 12/2000] (2.0L 1RZ-E 4 Cyl SOHC EFI)

Part
Nason logo

Nason Piston & pin set

$286.36

Specifications
Size: 0.50mm Oversize
Ring Set: 5281
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.75mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 24.00mm x 61.00mm
Comp Height: 35.50mm - 4.40mm
Length: 59.00mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 86.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Toyota Hilux RZN147R (2.0 Litre 4 Cyl 1RZ-E SOHC 8v):
  • Workmate RWD Ute 2 Door [11/1997 to 12/2000] 80KW With Manual Transmission
  • Workmate RWD Ute 2 Door [11/1997 to 10/2002] 80KW With Manual Transmission
  • Workmate RWD Ute 2 Door [01/2000 to 10/2002] 80KW With Manual Transmission

Description

Nason, 0.50mm Oversize
