Toyota >> Landcruiser >> VDJ79R >> 4.5 Litre V8 1VD-FTV DOHC 32v >> Workmate 10/2012 - Onwards 4 Door Cab Chassis >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Landcruiser VDJ79R Workmate Cab Chassis [10/2012 Onwards] (4.5L 1VD-FTV V8 DOHC Twin Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings

$1,251.61

Specifications
Piston Set: 8 x Pistons & Pins
Std Bore Size: 86.00mm
Size: 1.00mm / .040"
Head Type: Combustion Chamber With 4 Valve Reliefs
Piston Type: Cast
Length: 72.00mm

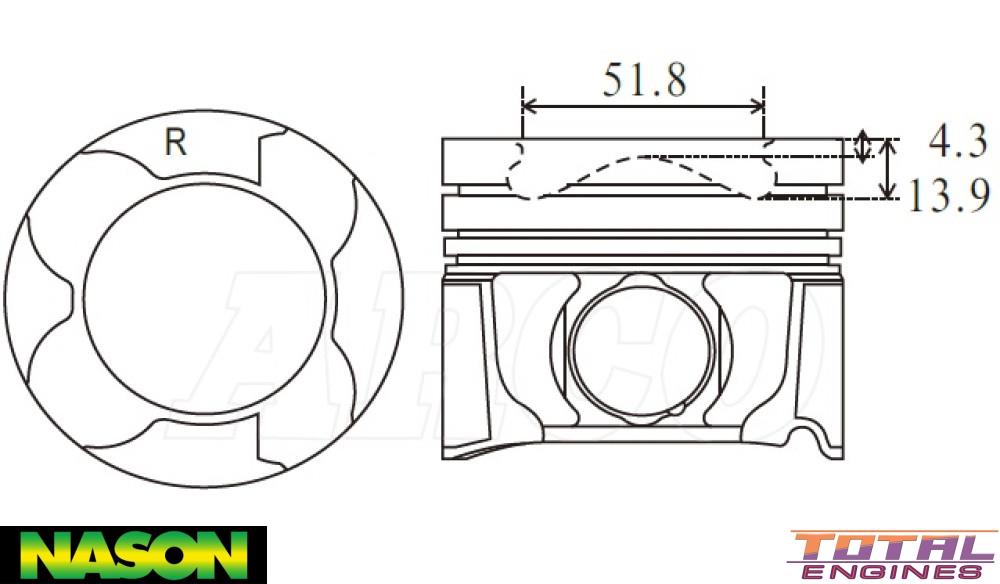

Comp Height: 48.00mm, -4.30mm, -13.90mm
Combustion Bowl OD: 51.80mm
Pin Size: 29.00mm x 69.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm
Ring Set: 36034-1.00
Size: Oversize 1.00mm

Alert WARNING! This part will NOT FIT the following Vehicles:

Toyota Landcruiser VDJ79R (4.5 Litre V8 1VD-FTV DOHC 32v):
  • LX VDJ79 4WD Cab Chassis 4 Door [09/2023 Onwards] 151KW With Manual Transmission

Tick This part will fit the following Vehicles:

Toyota Landcruiser VDJ79R (4.5 Litre V8 1VD-FTV DOHC 32v):
  • 4WD Cab Chassis 2 Door [03/2007 Onwards] 151KW With Manual Transmission
  • Workmate 4WD Cab Chassis 4 Door [10/2012 Onwards] 151KW With Manual Transmission

Description

Alfin With Oil Gallery Cooling
