Toyota >> Liteace >> KM51R >> 1.5 Litre 4 Cyl 5K OHV 8v >> KM51 10/1986 - 06/1999 3 Door Commercial Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Toyota Liteace KM51R KM51 Commercial Van [10/1986 to 06/1999] (1.5L 5K 4 Cyl OHV CARB)

Part
Nason logo

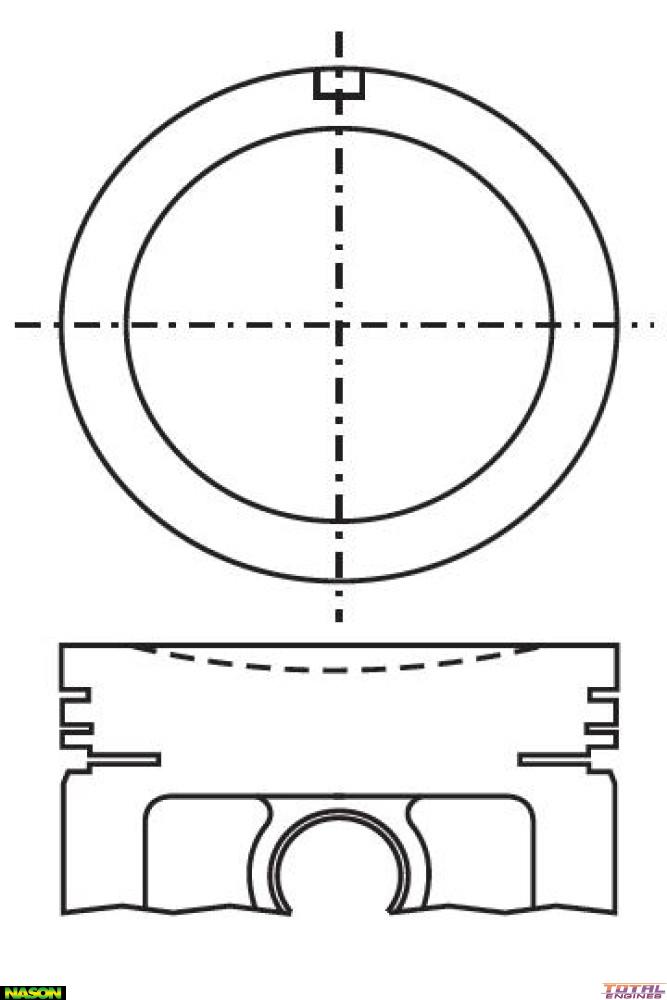

Nason Piston & Pin Set

Fitment Information:

Nason, 0.50mm Oversize Round Dish Top

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 80.50mm
Size: 0.50mm / .020"
Head Type: Dish Top
Piston Type: Cast
Length: 69.00mm
Comp Height: 36.00mm - 3.00mm
Pin Size: 18.00mm x 61.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 5300
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Toyota Liteace KM51R (1.5 Litre 4 Cyl 5K OHV 8v):
  • KM51 RWD Commercial Van 3 Door [10/1986 to 06/1999] 51KW With Auto or Manual Transmission With: With Round Dish Top
Toyota Townace KM51R (1.5 Litre 4 Cyl 5K OHV 8v):
  • KM51 RWD Commercial Van 3 Door [10/1986 to 06/1999] With Auto or Manual Transmission With: With Round Dish Top

Description

Nason, 0.50mm Oversize
