Toyota >> Vienta >> VCV10 >> 3.0 Litre V6 3VZ-FE DOHC 24v >> 10/1995 - 08/1997 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Toyota Vienta VCV10 Sedan [10/1995 to 08/1997] (3.0L 3VZ-FE V6 DOHC EFI)

Part
Nason logo

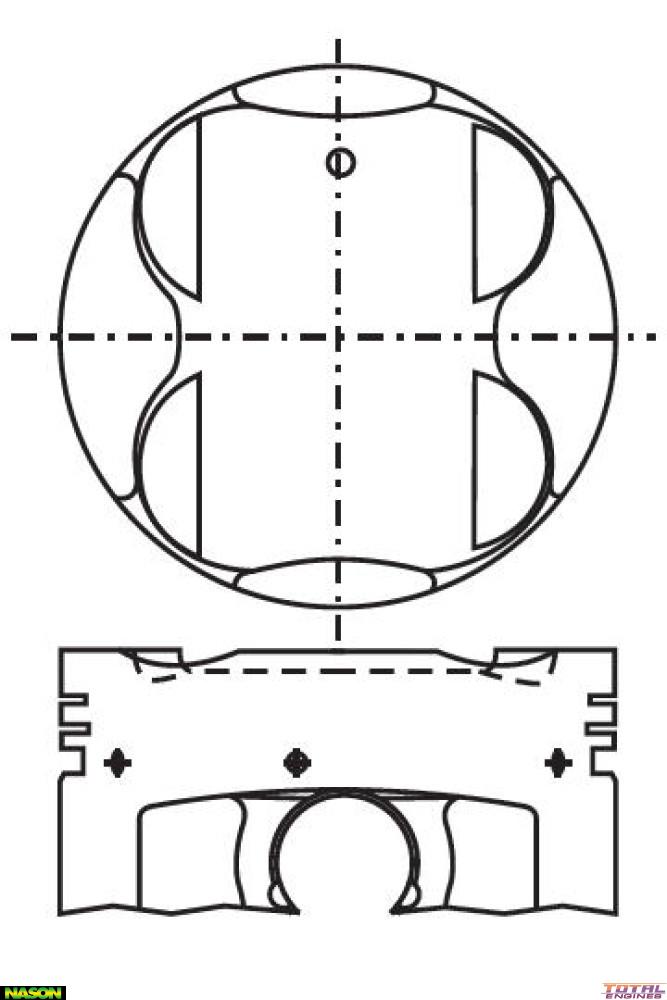

Nason Piston & pin set

$309.52

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 87.50mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 62.00mm
Comp Height: 34.00mm - 3.00mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4689 or 4689

Tick This part will fit the following Vehicles:

Toyota Vienta VCV10 (3.0 Litre V6 3VZ-FE DOHC 24v):
  • FWD Sedan 4 Door [10/1995 to 08/1997] 136KW With Auto or Manual Transmission
  • FWD Wagon 4 Door [10/1995 to 08/1997] 136KW With Auto Transmission

Description

Nason, STD Size
