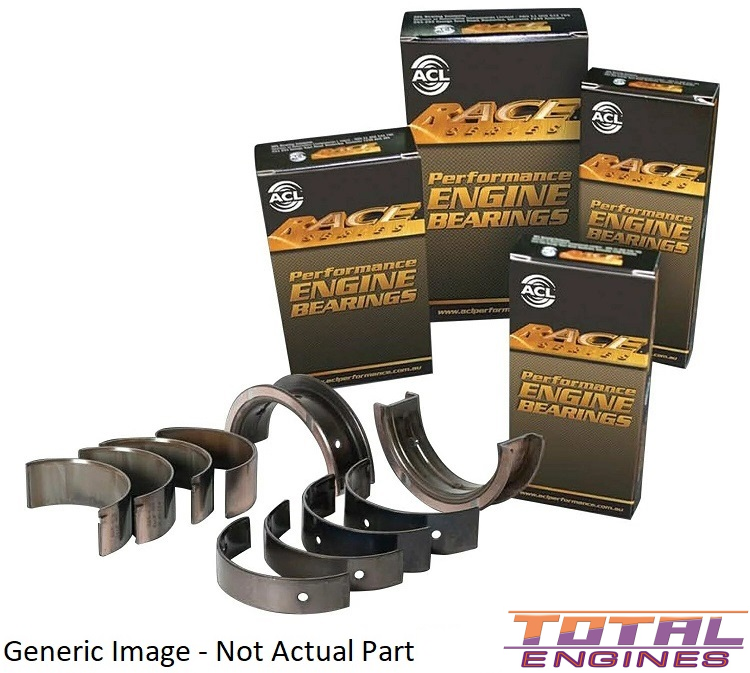

ACL Race Series Main bearing set-performance - 5M8297H-.50

Part

ACL Race Series Main bearing set-performance - 5M8297H-.50

Out Of Stock

Specifications
Material:	Race Series (Tri-Metal)
Position:	1,5
Std Shaft Diam:	2.3616"/2.3622" (59.984mm/60.000mm)
Oil Clearance:	TBA
Maximum Wall:	0.0789" (2.005mm)
Housing Bore:	2.5197"/2.5205" (64.000mm/64.020mm)
Max Length:	0.7480" (19.000mm)
Position:	2,4
Std Shaft Diam:	2.3616"/2.3622" (59.984mm/60.000mm)
Oil Clearance:	TBA
Maximum Wall:	0.0789" (2.005mm)
Housing Bore:	2.5197"/2.5205" (64.000mm/64.020mm)
Max Length:	0.5950" (15.120mm)
Position:	3
Std Shaft Diam:	2.3616"/2.3622" (59.984mm/60.000mm)
Oil Clearance:	TBA
Maximum Wall:	0.0789" (2.005mm)
Housing Bore:	2.5197"/2.5205" (64.000mm/64.020mm)
Max Length:	0.8640" (21.950mm)
Size:	0.50mm Oversize

Description

Thrust In #3 Position - Overwidth Flange See Notes

Overwidth flanges for undersizes: Std=Std .25=Std+.10mm

50=Std+.18mm .75 = Std+.26mm.
