INTERCHANGE Piston & ring set - 4MKRY8096-1.00

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	96.00mm
Size:	1.00mm/0.40"

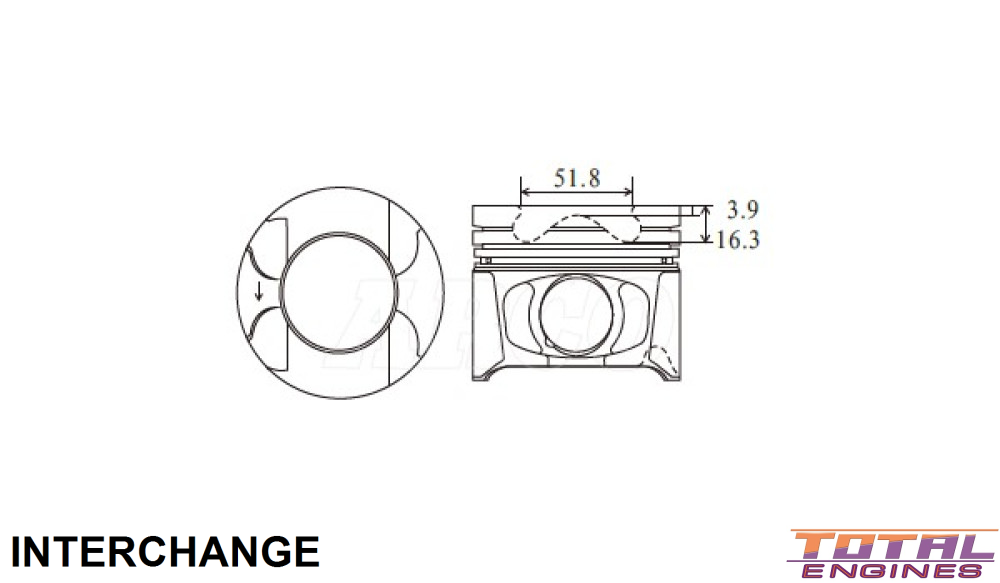

Head Type:	Dish top with four valve reliefs
Piston Type:	Cast
Length:	78.50mm
Comp Height:	49.60mm - 3.90mm -16.30mm
Combustion Bowl OD:	51.90mm
Pin Size:	34.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm

Description

3.70mm top of combustion bowl mound to piston crown

Alfin inserts, Oil gallery cooling, MOS2 coated skirts
