INTERCHANGE Piston & ring set - 4MKRY8097-1.00

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	96.00mm
Size:	1.00mm/0.40"
Head Type:	Dish top with four valve reliefs
Piston Type:	Cast
Length:	77.60mm
Comp Height:	49.60mm - 4.90mm -16.40mm
Combustion Bowl OD:	51.80mm
Pin Size:	34.00mm x 73.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm

Description

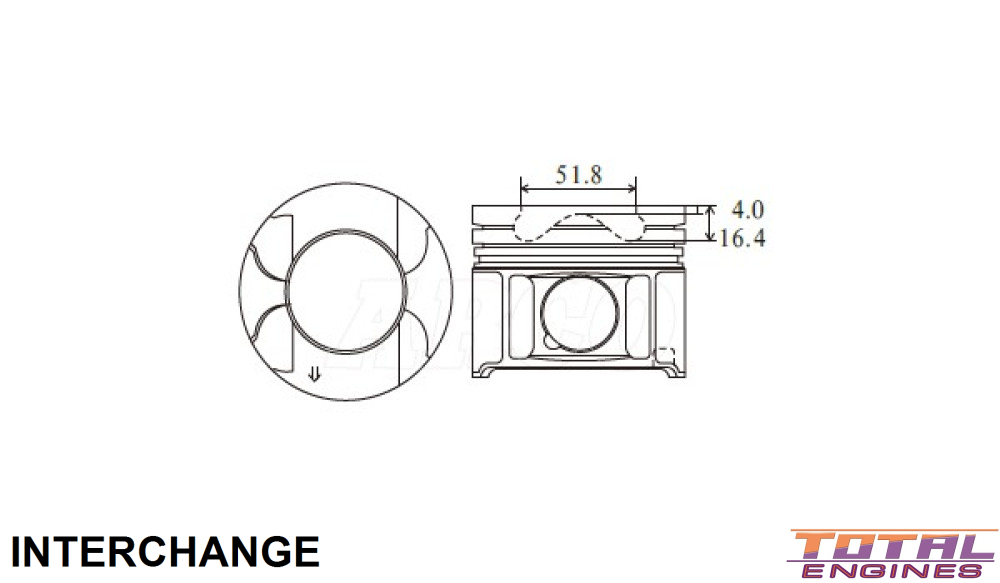

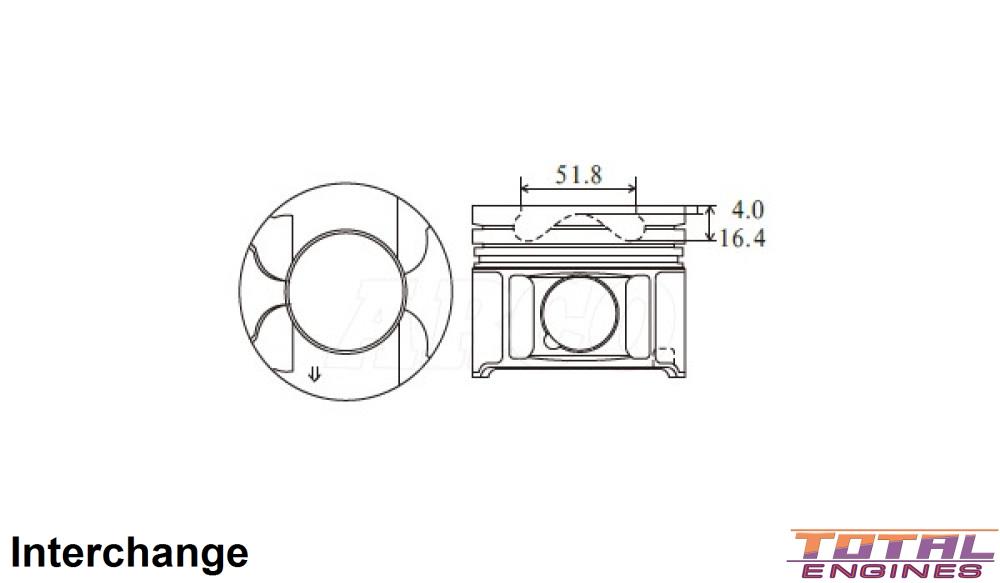

4.0mm Top Of Combustion Bowl Mound To Piston Crown

Alfin inserts, Oil gallery cooling, Anodized crown

MOS2 coated skirts
