INTERCHANGE Piston & ring set - PKHD4FB-0.50

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	77.20mm
Size:	0.50mm/.020"

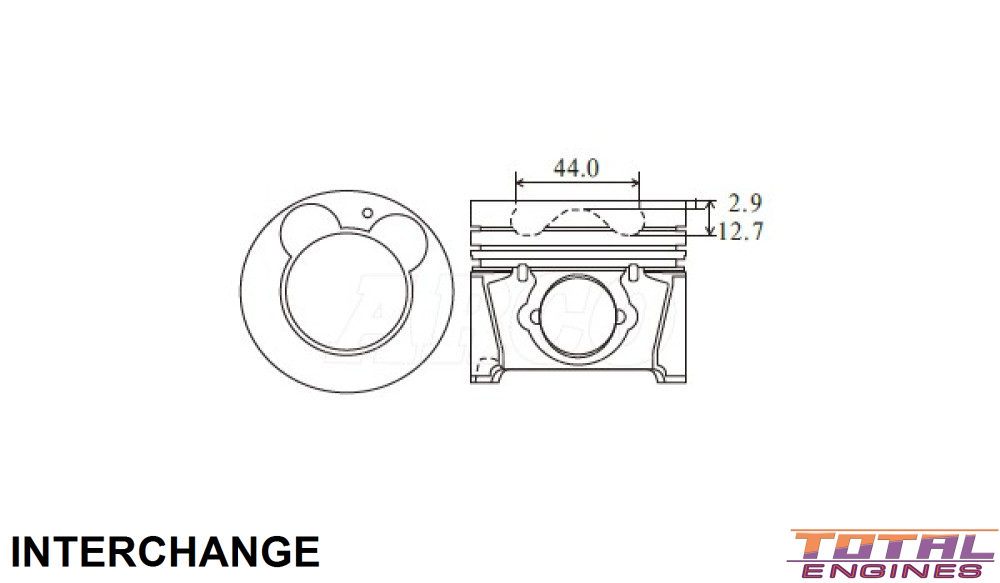

Head Type:	Dish top with two valve reliefs
Piston Type:	Cast
Length:	65.70mm
Comp Height:	42.00mm - 2.90mm -12.70mm
Combustion Bowl OD:	44.00mm
Pin Size:	28.00mm x 62.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.75mm
2nd Ring Width:	1.75mm
Oil Ring Width:	3.00mm

Description

Alfin insert, Oil gallery cooling, MOS2 coated skirts
