Interchange Piston & ring set - PKIS4JB1TL-STD

Specifications
Oil Ring Width:	4.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.00mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	34.00mm x 78.00mm

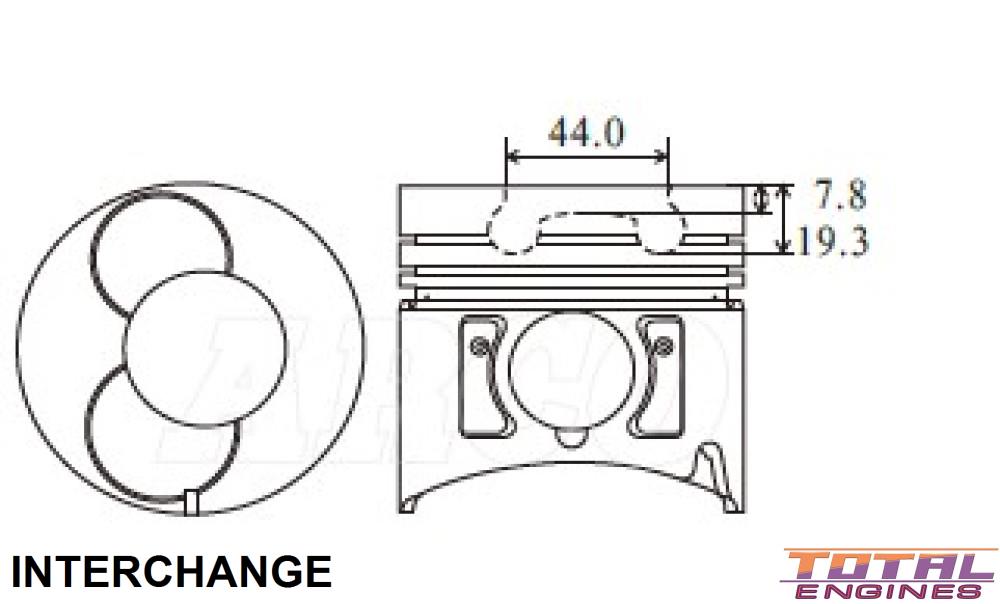

Combustion Bowl OD:	44.00mm
Comp Height:	52.00mm - 7.90mm -19.30mm
Length:	92.00mm
Piston Type:	Cast
Head Type:	Dish top with two valve reliefs
Size:	STD
Std Bore Size:	93.00mm
Piston Set:	4 x Pistons, Pins & Rings

Description

Suits 10/1996 on- Round combustion bowl

Alfin inserts
