INTERCHANGE Piston & ring set - PKIS4JB1T-STD

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	93.00mm
Size:	STD
Head Type:	Dish top with two valve reliefs
Piston Type:	Cast
Length:	92.00mm

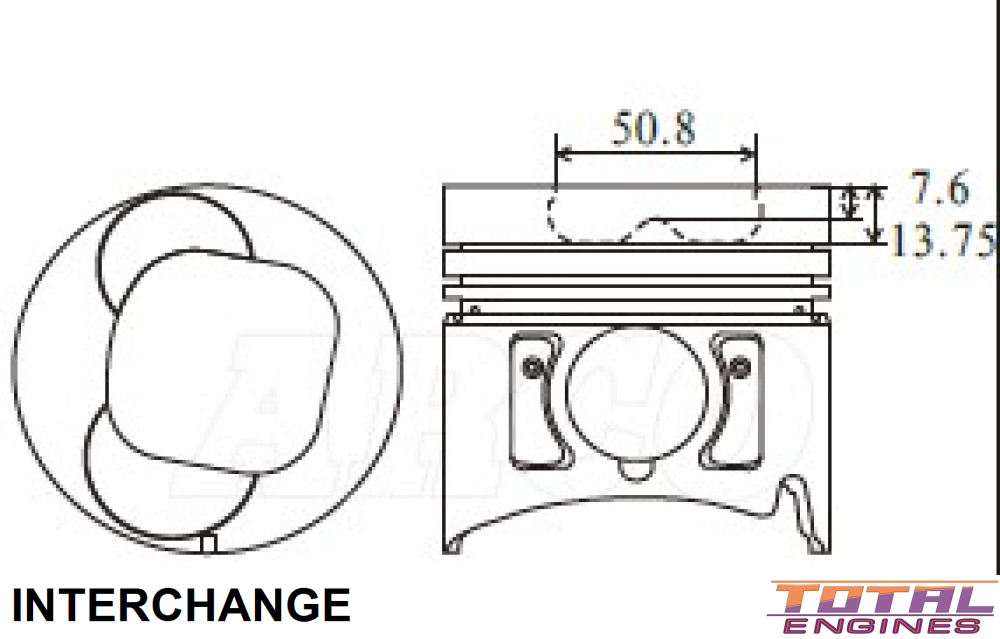

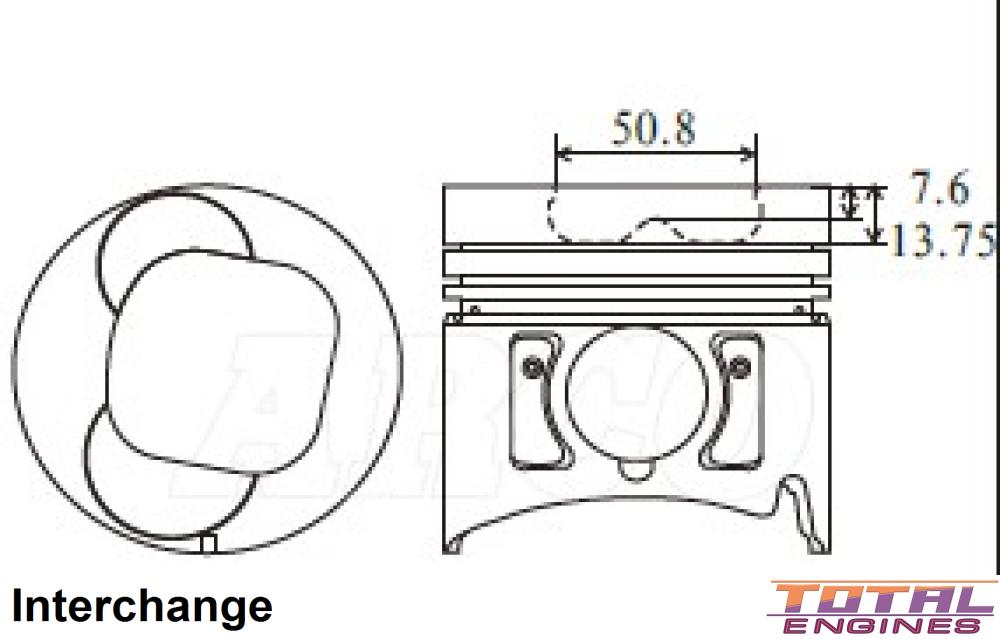

Comp Height:	52.00mm - 7.60mm -13.75mm
Combustion Bowl OD:	50.80mm
Pin Size:	34.00mm x 78.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm

Description

Suits up to 10/1996- Square combustion bowl

Alfin inserts
