INTERCHANGE >> INTERCHANGE Piston & ring set - PKM4D56TN-A-.50

INTERCHANGE Piston & ring set - PKM4D56TN-A-.50

Part
INTERCHANGE logo

INTERCHANGE Piston & ring set - PKM4D56TN-A-.50

Out Of Stock

Specifications
Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 91.10mm
Size: 0.50mm/.020"

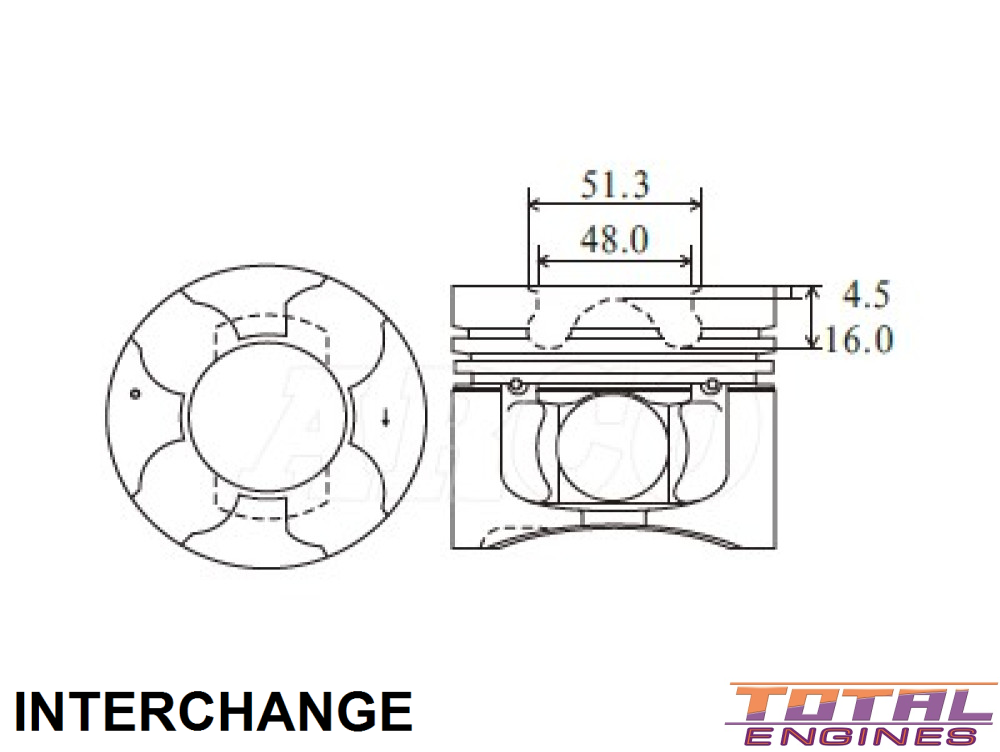

Head Type: Dish Top Four valve Reliefs
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm - 4.50mm - 16.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 3.00mm

Description

Suits 131kw Engines With 48mm Combustion Bowl

Alfin Insert, Oil Gallery Cooling, Anodized Crown & MOS2 Skirts
