INTERCHANGE Piston & ring set - PKM4M42T-0.50

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	95.00mm
Size:	0.50mm/0.020"
Head Type:	Dish top with four valve relief
Piston Type:	Cast
Length:	87.00mm

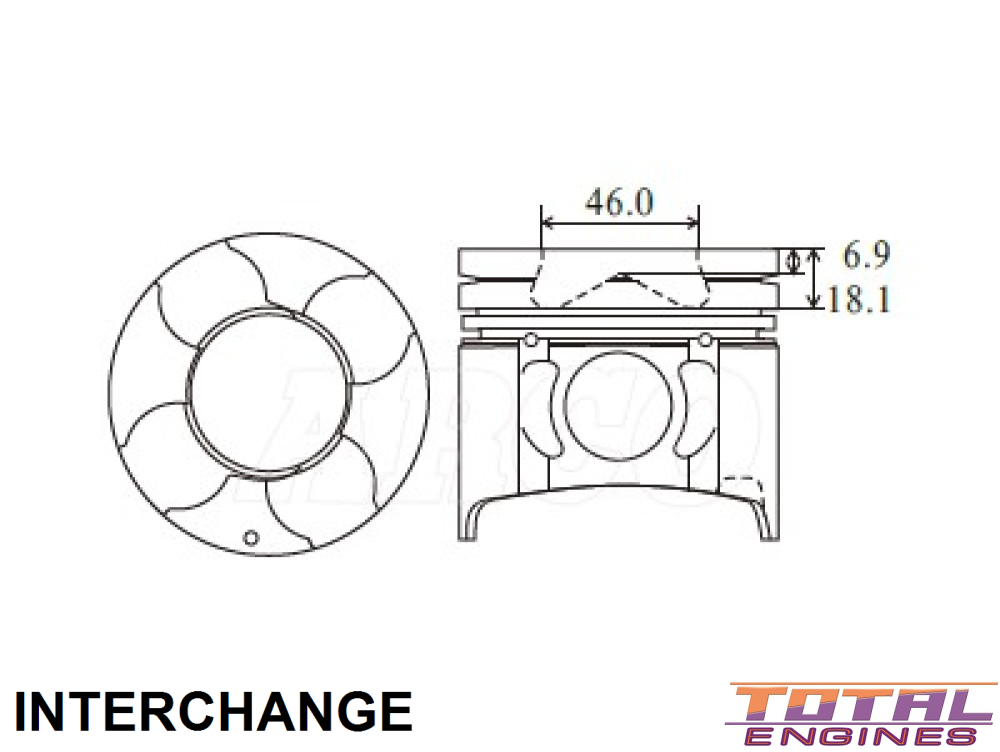

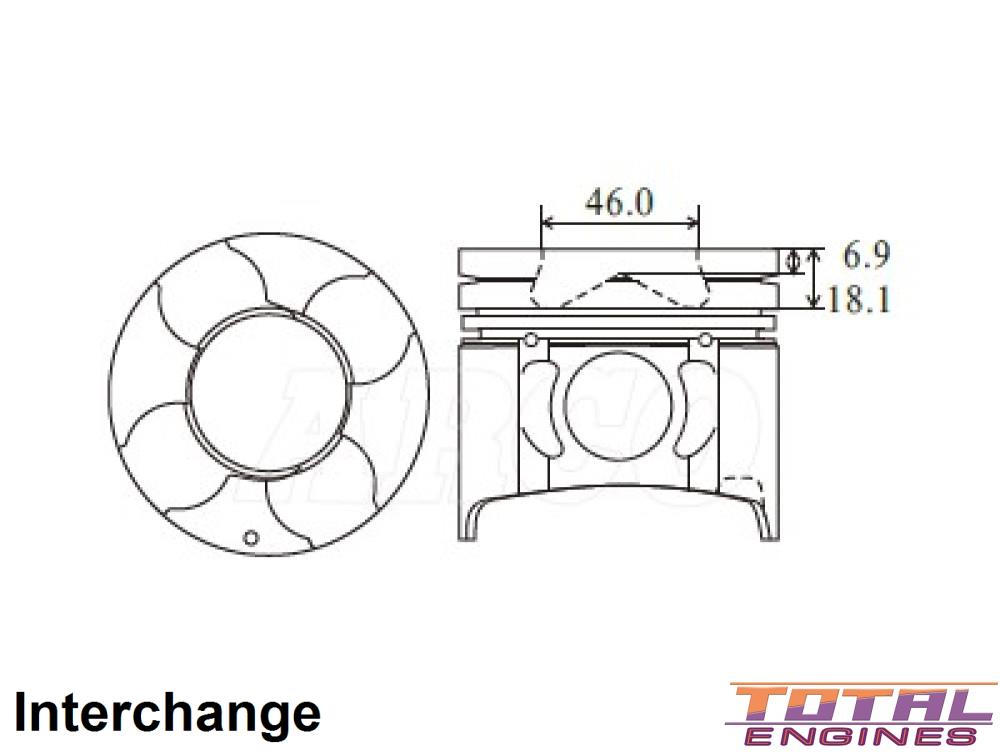

Comp Height:	47.00mm - 6.90mm -18.10mm
Combustion Bowl OD:	46.00mm
Pin Size:	32.00mm x 80.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.30mm Double Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm

Description

Suits 4M42-0AT Only

Alfin inserts, Oil gallery cooling
