Interchange Piston & ring set - PKM4M42T-STD

Specifications
Oil Ring Width:	3.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.30mm Double Keystone
Piston to Bore:	See Label on Box
Skirt Coating:	Yes
Pin Type:	Full Floating
Pin Size:	32.00mm x 80.00mm

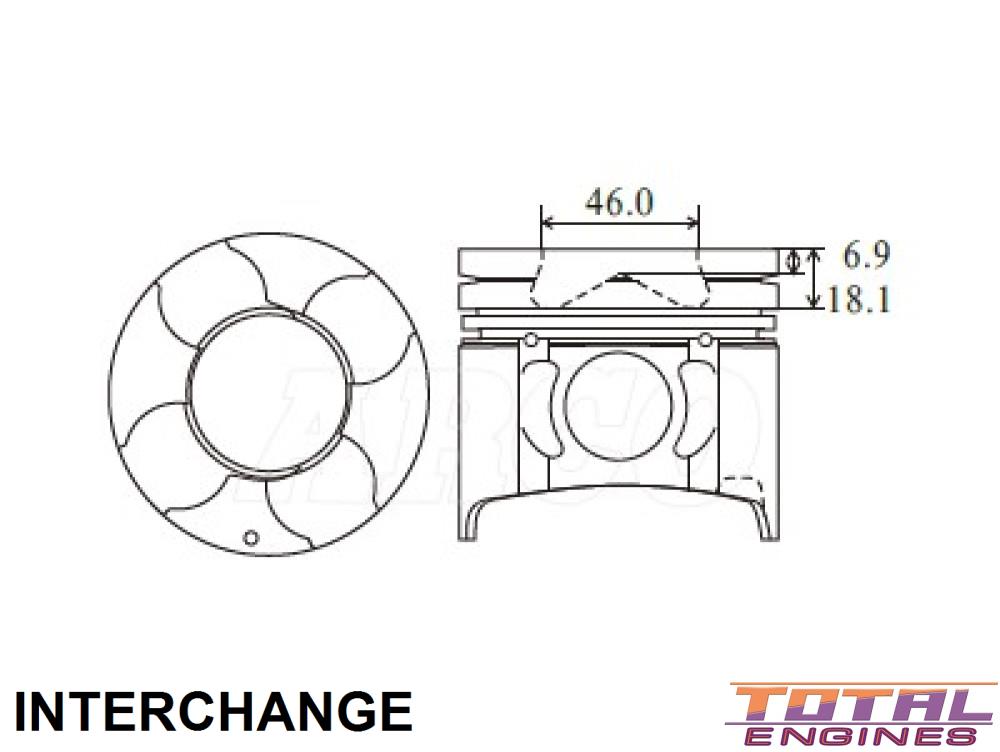

Combustion Bowl OD:	46.00mm
Comp Height:	47.00mm - 6.90mm -18.10mm
Length:	87.00mm
Piston Type:	Cast
Head Type:	Dish top with four valve relief
Size:	STD
Std Bore Size:	95.00mm
Piston Set:	4 x Pistons, Pins & Rings

Description

Suits 4M42-0AT Only

Alfin inserts, Oil gallery cooling
